Installing TENSIONING Roller

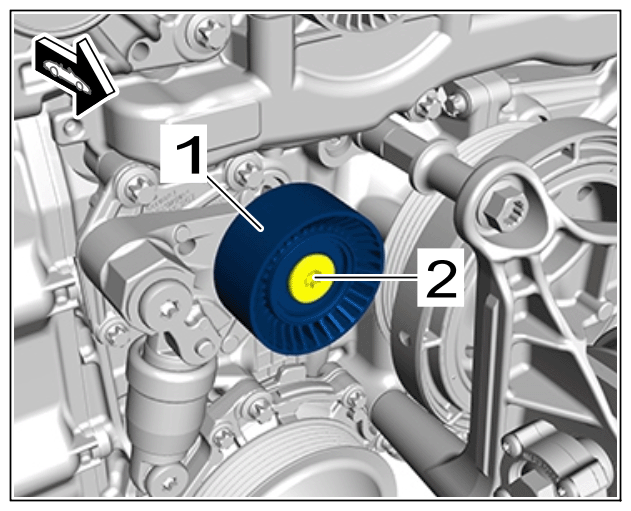

1. Install tensioning roller -1-  .
   1. 1.1  Position tensioning roller -1-  .
   2. 1.2  Fit and tighten screw -2-  .

      > Tightening torque 23 N.m (17 ft lb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tensioning roller

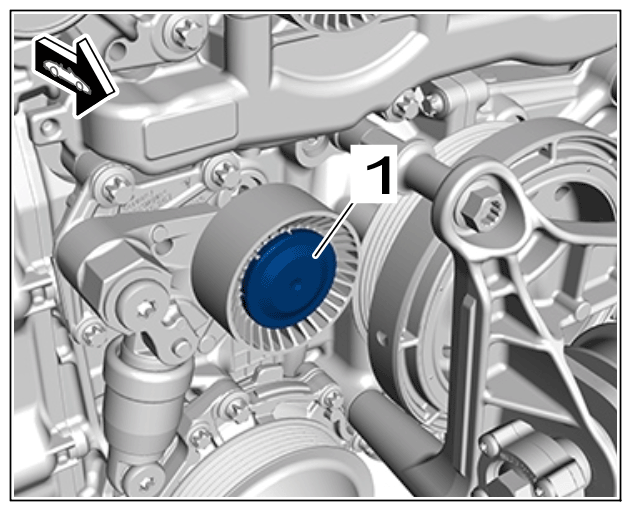

2. Clip protection cap into tensioning roller -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protection cap on tensioning roller
