Component Information
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

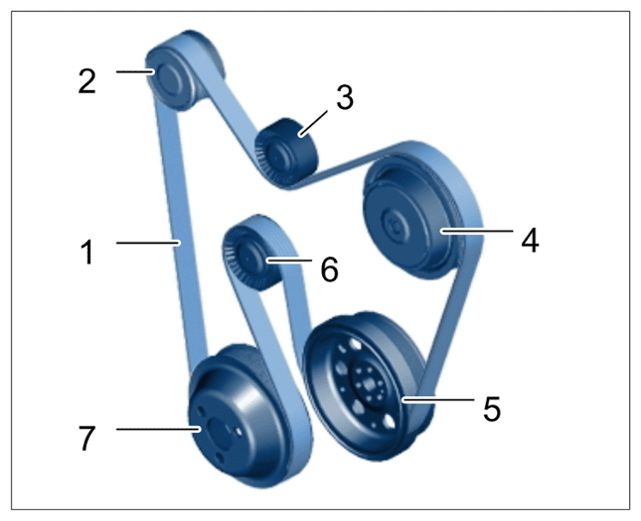

Installation overview for drive belt
| 1 |
Drive belt |
| 2 |
Generator pulley |
| 3 |
Deflection roller |
| 4 |
Air-conditioning compressor pulley |
| 5 |
Crankshaft vibration damper |
| 6 |
Tensioning roller for belt tensioner |
| 7 |
Coolant pump pulley |
