Installing Console With Deflection Roller

  1. Install console with deflection roller -1-  .
    1. 1.1  Fit console with deflection roller -1-  .

      When doing so, make sure that the guide sleeves engage correctly in the bores on the console with deflection roller -1-  .

    2. 1.2  Position holder -4-  .
    3. 1.3  Fit screws -2 and 3-  .
    4. 1.4  Tighten screws -2-  .

      > Tightening torque 23 N.m (17 ft lb.)

    5. 1.5  Tighten screw -3-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

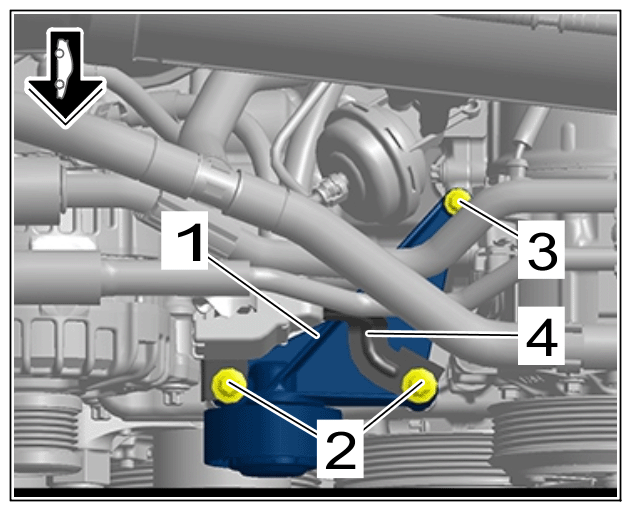

      G16219358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Console with deflection roller
