Removing Belt TENSIONER

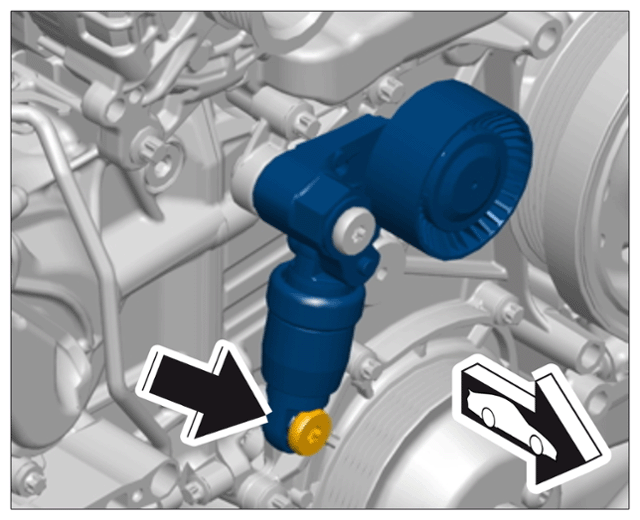

  1. Unscrew screw on bottom of belt tensioner -arrow-  .
    G16219342Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom screw on belt tensioner

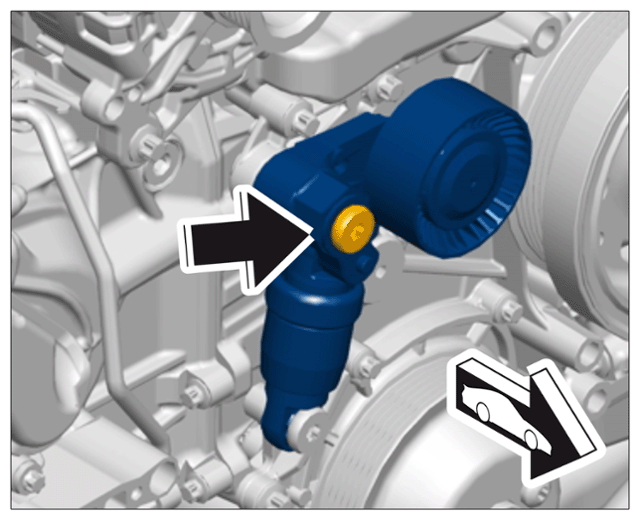

  2. Unscrew screw on top of belt tensioner -arrow-  .
    G16219343Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Top screw on belt tensioner

  3. Lift the belt tensioner up and off.
