Replacing Tensioner

Information

• When fitting the tensioner, make sure that the lettering can be read from outside.
• The bellows must be facing upwards (see inscription).

1. Fit tensioner on carrier for tension roller.
   1. 1.1  Fit and tighten screw securing tensioner to carrier for tension roller -arrow-  .

> Tightening torque 23 N.m (17 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

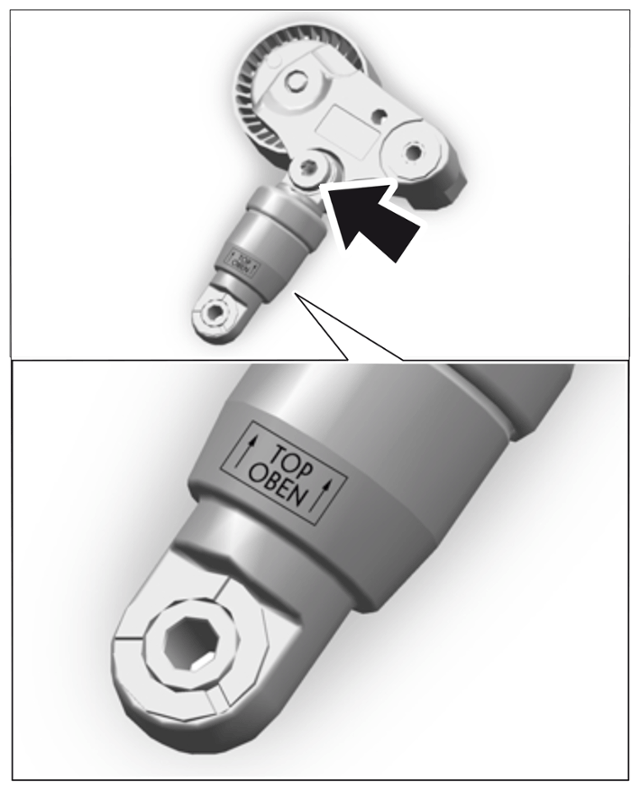

Tensioner on carrier for tension roller

1. Position belt tensioner and screw in screw on top of belt tensioner -arrow-  by hand, but do not tighten yet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

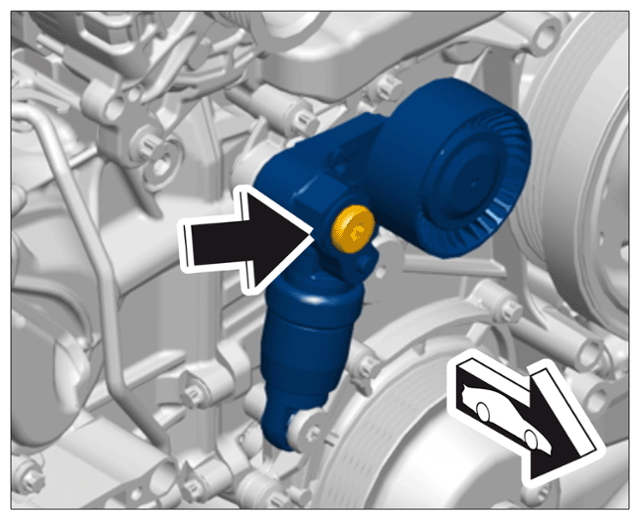

   Top screw on belt tensioner

2. Screw in screw on bottom of belt tensioner -arrow-  by hand, but do not tighten yet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

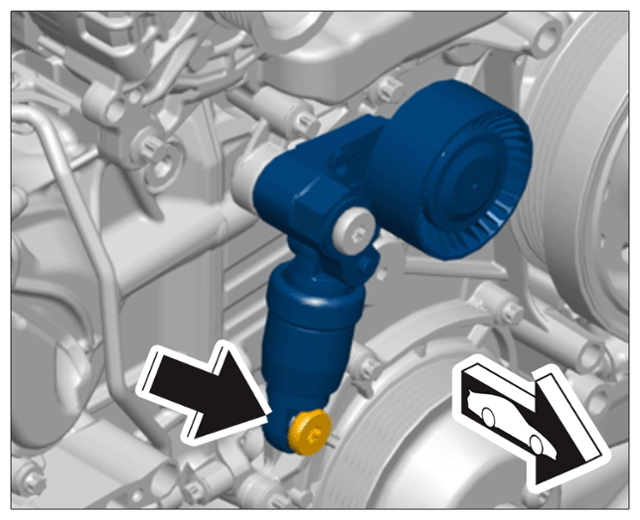

   Bottom screw on belt tensioner

3. Tighten screws on top and bottom of belt tensioner.

   Top screw on belt tensioner:

   > Tightening torque 28 N.m (21 ft lb.) +/- 3 N.m (2 ft lb.)

   Bottom screw on belt tensioner:

   > Tightening torque 28 N.m (21 ft lb.) +/- 3 N.m (2 ft lb.)
