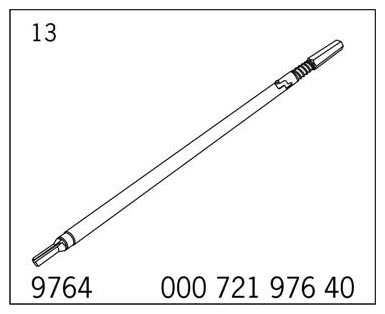

| disassembly tool |
Special tool |
> 9764 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| locating pin |
Special tool |
> 9595/1 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

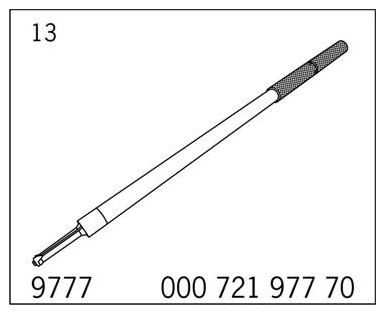

| disassembly tool |
Special tool |
> 9777 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

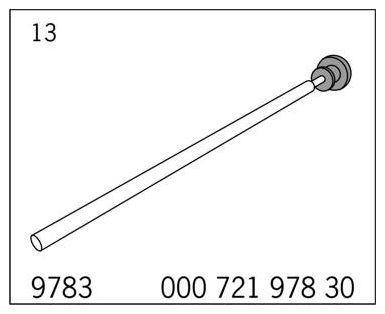

| assembly aid |
Special tool |
> 9783 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

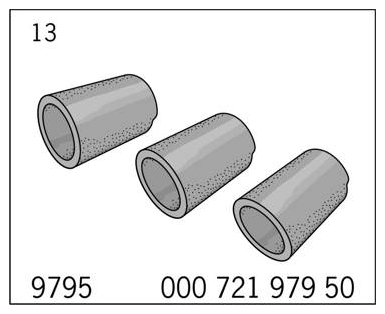

| assembly aid |
Special tool |
> 9795 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Mounting parts |
Special tool |
> 9590 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| a hot - air blower |
Vehicle-specific workshop equipment |
> VAS 1978/14A |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| holding bridge |
Special tool |
> P90028 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

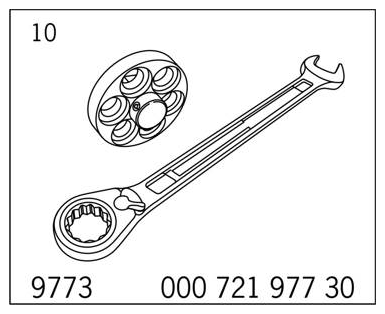

| turning device |
Special tool |
> 9773 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

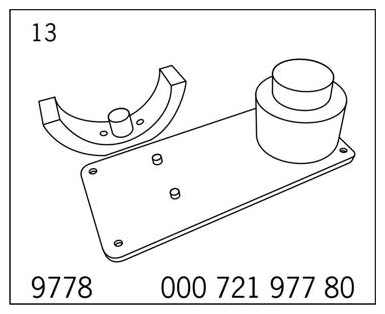

| retaining device |
Special tool |
> 9778 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

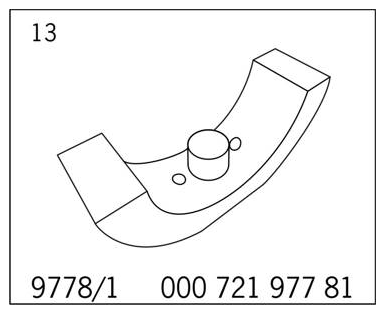

| piston receiving element |
Special tool |
> 9778/1 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

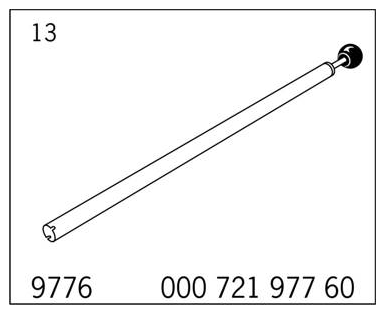

| assembly tool |
Special tool |
> 9776 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

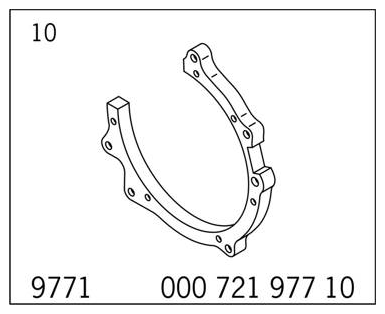

| engine adapter |
Special tool |
> 9771 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

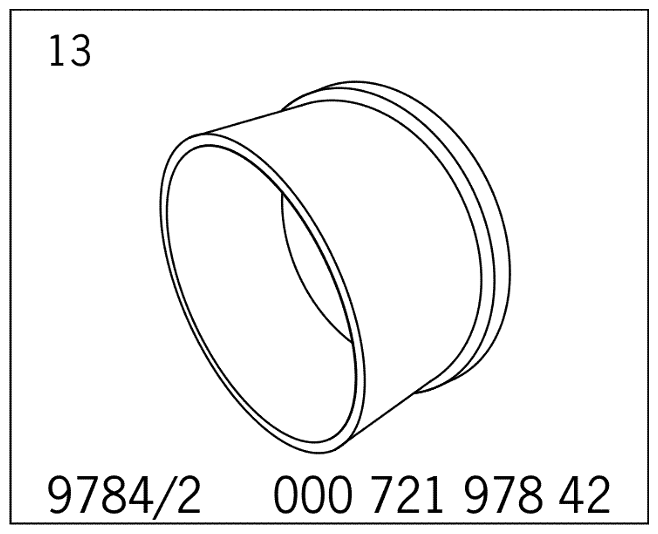

| funnel |
Special tool |
> 9784/2 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| restraining straps |
Special tool |
> P221 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

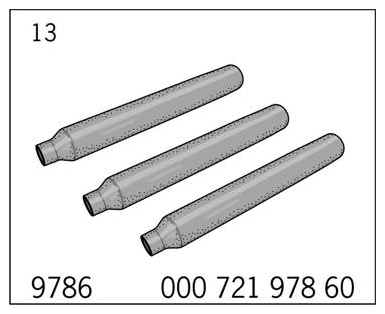

| protective sleeve |
Special tool |
> 9786 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

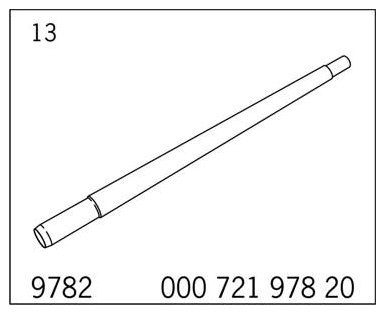

| centering mandrel |
Special tool |
> 9782 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

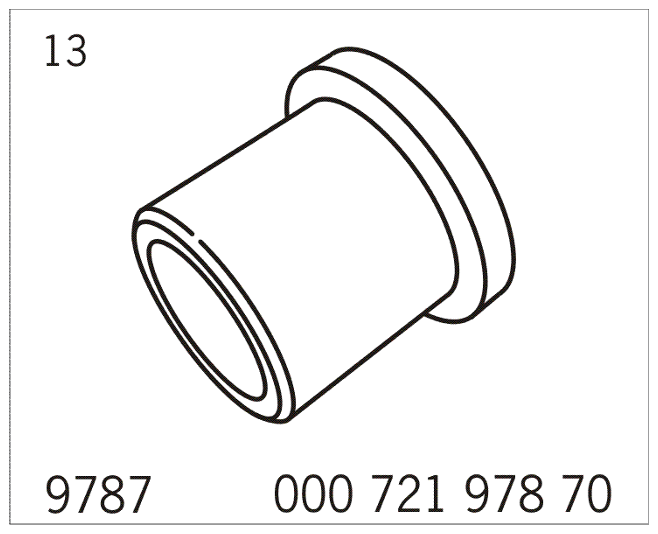

| piston assembly aid |
Special tool |
> 9787 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| assembly aid |
Special tool |
> 9598 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
