Removing Oil Separator

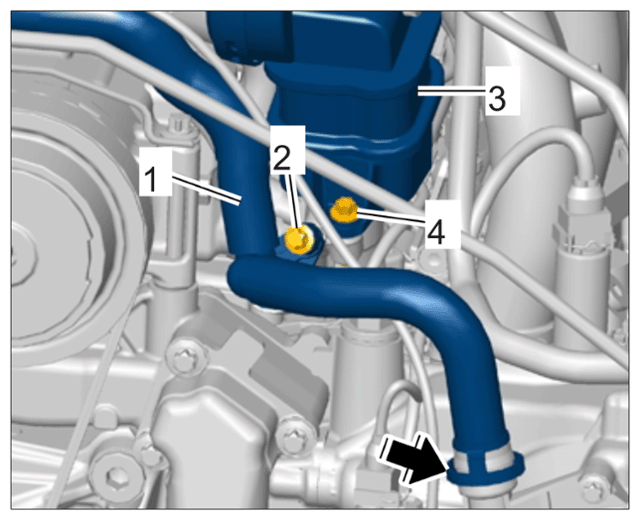

Unscrew screw -4- on the oil separator -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front oil separator (shown on the 981)

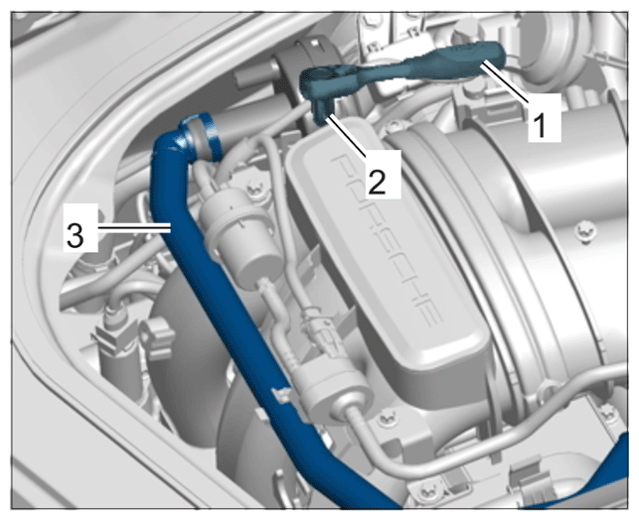

Release and pull off positive crankcase ventilation line -3- at the oil separator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase vent line (shown on the 981)

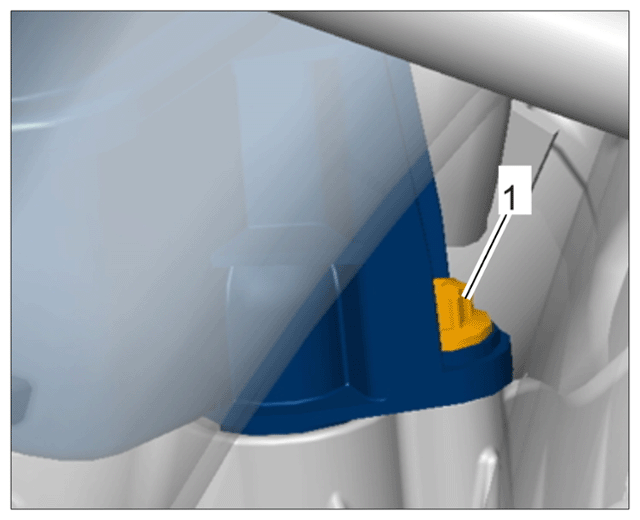

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil separator screw under intake-air distributor (shown on the 981)
Carefully press positive crankcase ventilation line aside and out of the work area.

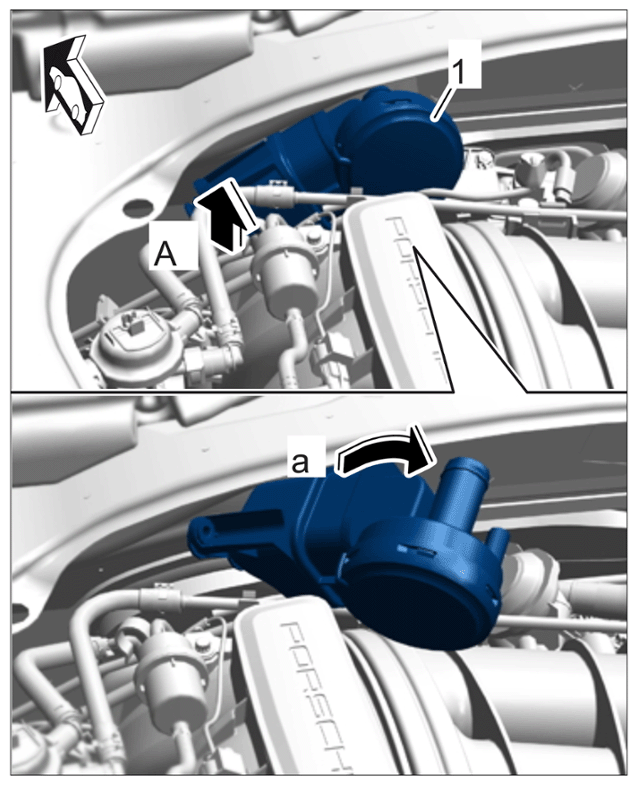

Pull oil separator -1- up off the oil bracket -arrow A- and remove it -arrow a- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil separator (shown on the 981)
Clean connection points and seal with stoppers.
