Removing Positive Crankcase Ventilation Line (Oil Separator Section)

  1. Remove positive crankcase ventilation line -1-  .
    1. 1.1  Unclip clips -2 and 3-  .
    2. 1.2  Release positive crankcase ventilation line quick-connecting lock -4-  and disconnect.
    3. 1.3  Release positive crankcase ventilation line quick-connecting lock -5-  and disconnect.
    4. 1.4  Remove positive crankcase ventilation line -1-  .

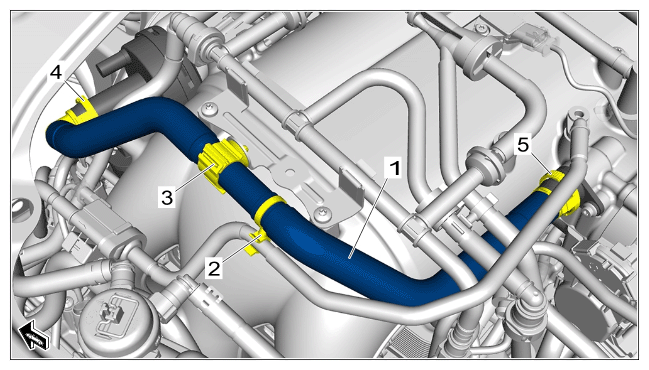

      G16219168Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positive crankcase ventilation line
