Installing Positive Crankcase Ventilation Line (Oil Separator Section)

  1. Install positive crankcase ventilation line -1-  .
    1. 1.1  Position positive crankcase ventilation line -1-  .
    2. 1.2  Fit positive crankcase ventilation line quick-connecting lock -7-  on intake-air distributor connection piece -3-  and lock.
    3. 1.3  Fit positive crankcase ventilation line quick-connecting lock -6-  on oil separator -2-  and lock.
    4. 1.4  Clip in clips -4 and 5-  .

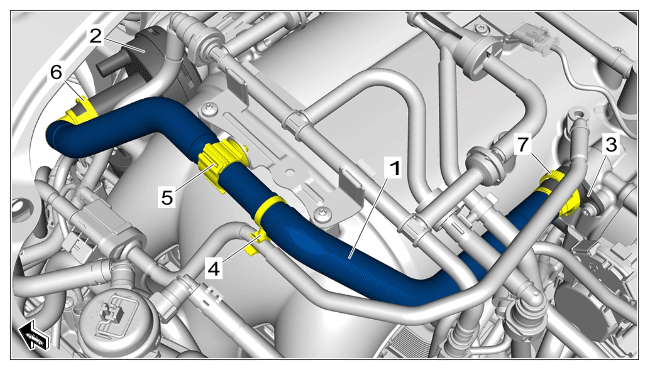

      G16219172Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positive crankcase ventilation line
