Removing Engine Mounting

Disconnect coolant hoses at the underbody -1- .
1. 1.1 Remove strut -2- .
  1. 1.1.1 Unscrew and remove screws -3- .
  2. 1.1.2 Unclip clip -4- from coolant hoses at the underbody -1- and remove strut -2- .
2. 1.2 Loosen spring band clamps -5- using > VAS 6890 - spring band clamps pliers .
3. 1.3 Pull off coolant hoses at the underbody -1- .
4. 1.4 Release and disconnect quick connector for coolant vent line -6- .
5. 1.5 Catch escaping coolant and close off line connections using suitable stoppers.

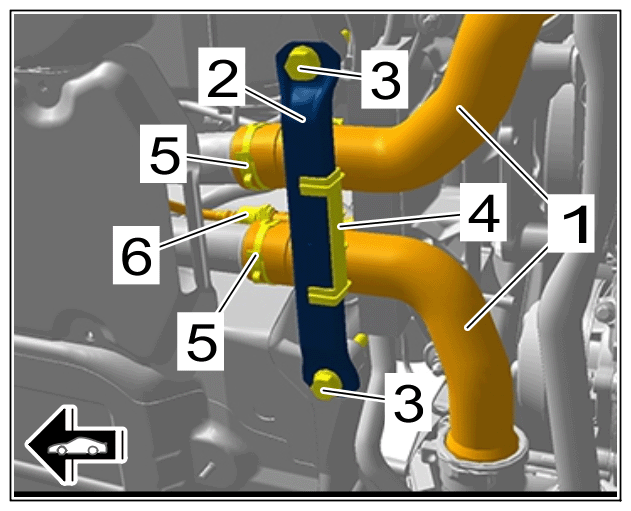

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses at the underbody
Loosen engine carrier (bracket) -1- at the top.
1. 2.1 Unscrew screw -2- and leave it in the engine carrier (bracket).
2. 2.2 Unscrew screw -3- and counter at the hexagon -4- .
3. 2.3 Remove spacer sleeve -5- .

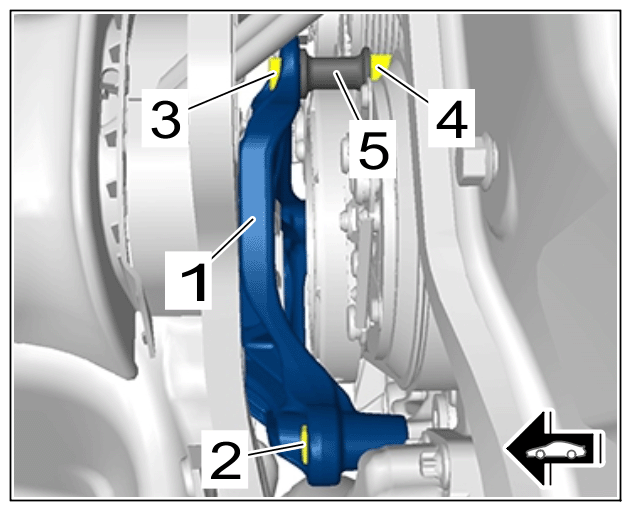

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine carrier (bracket)
Support the engine over a large area of the oil pan using > VAS 6931 - engine and gearbox jack and a suitable base.
Remove engine mount with engine carrier (bracket) -1- .
1. 4.1 Remove foam part -2- .
  1. 4.1.1 Remove lines -3- from foam part -2- and set them aside.
  2. 4.1.2 Guide out foam part -2- .
2. 4.2 Unscrew nuts -4- .
3. 4.3 Unscrew and remove screws -5- .
4. 4.4 Guide engine mount with engine carrier (bracket) -1- down and out.

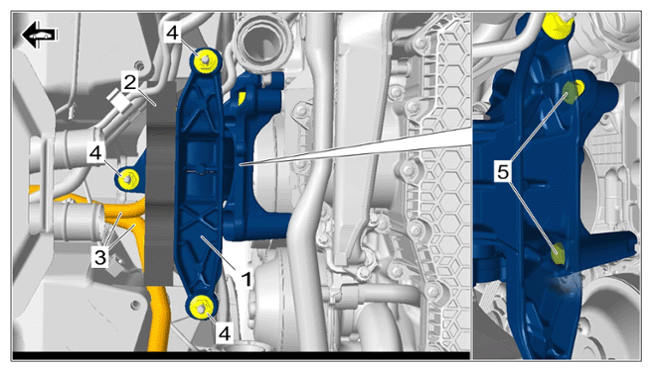

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount with engine carrier (bracket)
