WM, 103219 Removing And Installing Engine Carrier: Tools

Tool denomination	Type	Tool number	Image

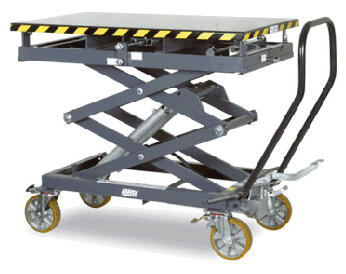

Master Gear unit elevating platform	Vehicle-specific workshop equipment	>VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

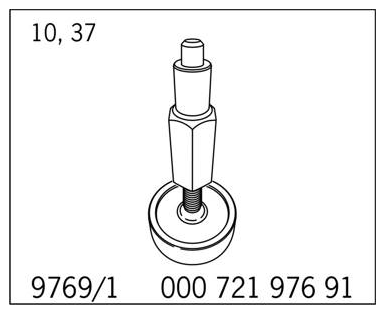

Support	Special tool	>9769/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

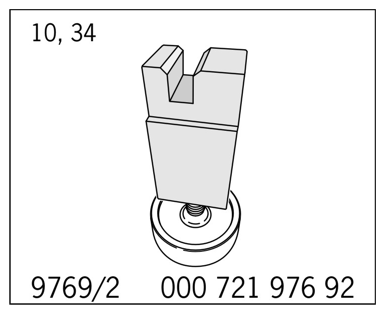

Support	Special tool	>9769/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

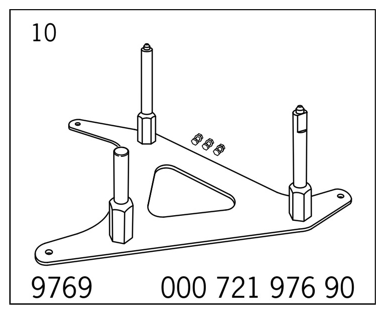

Retainer plate	Special tool	>9769	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

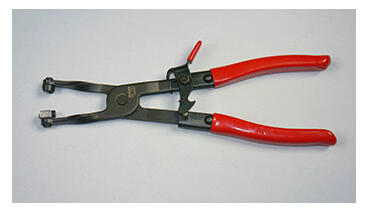

Spring Band Clamp Pliers	Vehicle-specific workshop equipment	>VAS 6890	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

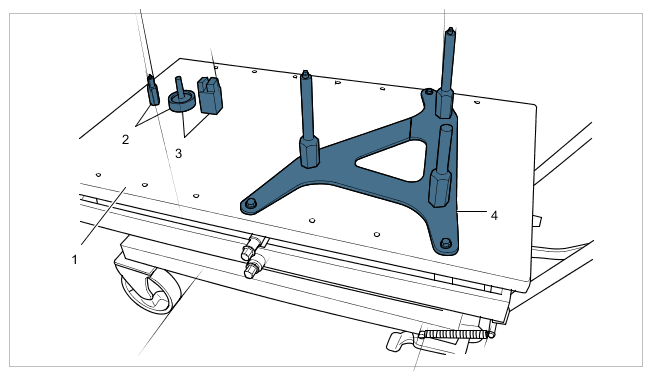

Master Gear unit elevating platform with mounting point for engine and transmission support

1	> VAS 6832 - Master Gear unit elevating platform
2	> 9769/1 - Support for Porsche Doppelkupplung (PDK)
3	> 9769/2 - Support for manual transmission
4	> 9769 - Retainer plate for engine
