Removing Engine Carrier

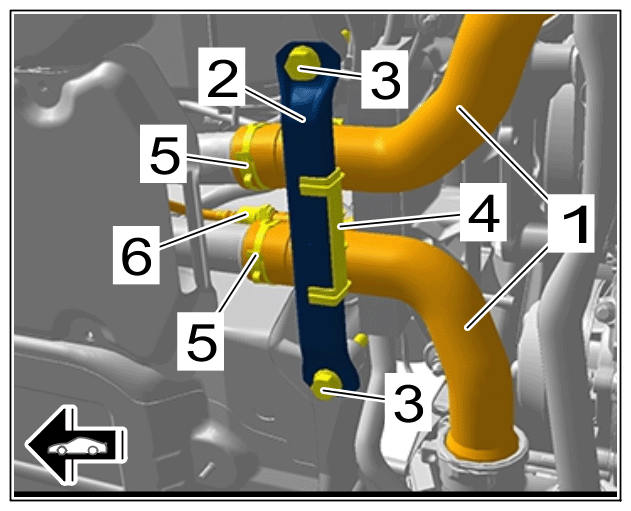

Disconnect coolant hoses at the underbody -1- .
1. 1.1 Remove strut -2- .
  1. 1.1.1 Unscrew and remove screws -3- .
  2. 1.1.2 Unclip clip -4- from coolant hoses -1- and remove strut -2- .
2. 1.2 Loosen spring band clamps -5- using > VAS 6890 - Spring Band Clamp Pliers .
3. 1.3 Pull off coolant hoses -1- .
4. 1.4 Release and disconnect quick connector for coolant vent line -6- .
5. 1.5 Catch escaping coolant and close off line connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses at the underbody

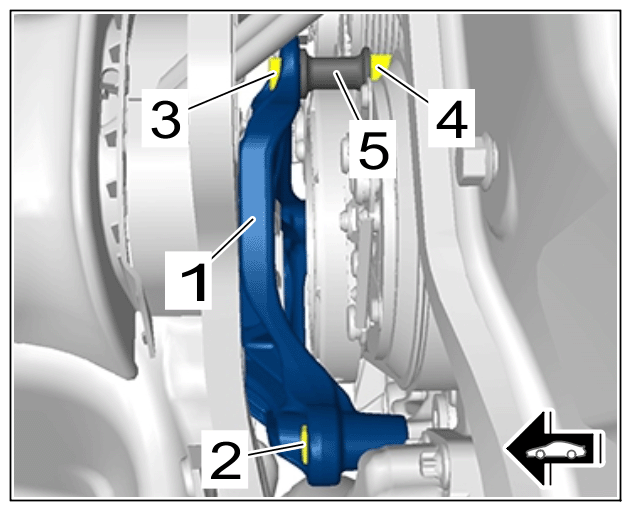

Loosen upper threaded joint on the engine carrier -1- .
1. 2.1 Unscrew screw -2- .
2. 2.2 Unscrew screw -3- and counter at the hexagon -4- .
3. 2.3 Remove spacer sleeve -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper threaded joint on engine carrier
> VAS 6832 - Master Gear unit elevating platform must be prepared. Then, fit it on the engine.
> 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ENGINE ASSEMBLY SUPPORT

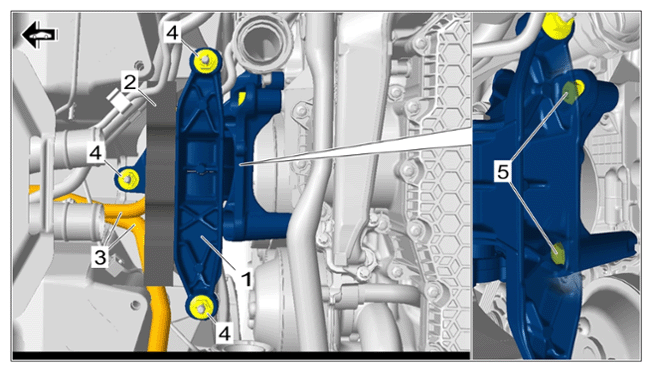

Remove engine carrier -1- .
1. 4.1 Remove foam part -2- .
  1. 4.1.1 Remove lines -3- from foam part -2- and set them aside carefully.
  2. 4.1.2 Guide out foam part -2- .
2. 4.2 Unscrew nuts -4- .
3. 4.3 Unscrew and remove screws -5- .
4. 4.4 Guide engine carrier -1- down and out.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine carrier
