Installing Engine Carrier

1. 1.1  Position engine carrier -1-  .
2. 1.2  Fit and tighten screws -5-  .

   > Tightening torque 50 N.m (37 ft lb.)

3. 1.3  Screw on and tighten nuts -4-  .

   > Tightening torque 65 N.m (48 ft lb.)

4. 1.4  Install foam part -2-  .
   1. 1.4.1  Move lines -3-  into installation position.
   2. 1.4.2  Insert foam part -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

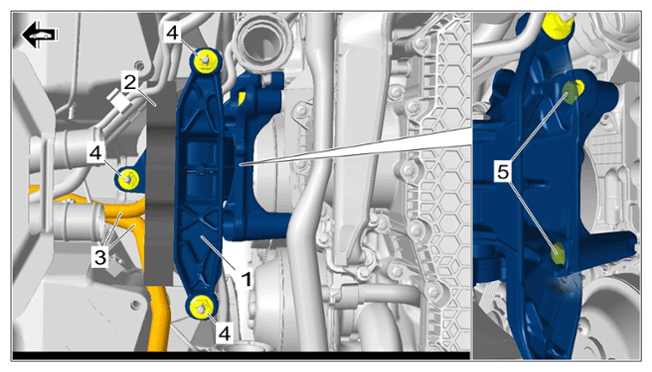

Engine carrier

1. 2.1  Insert spacer sleeve -5-  .
2. 2.2  Fit and tighten screw -3-  and counter at the hexagon -4-  .

   > Tightening torque 50 N.m (37 ft lb.)

3. 2.3  Fit and tighten screw -2-  .

   > Tightening torque 50 N.m (37 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

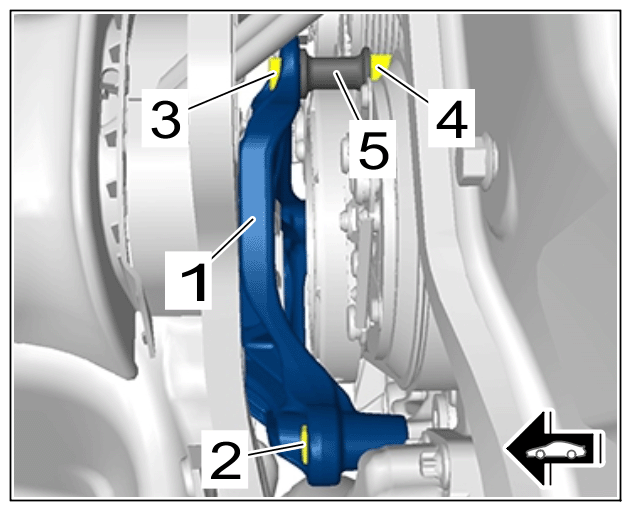

Upper threaded joint on engine carrier

1. 3.1  Push on and lock quick connector for coolant vent line -6-  .
2. 3.2  Connect coolant hoses -1-  .
3. 3.3  Fasten spring band clamps -5-  using > VAS 6890 - Spring Band Clamp Pliers  .
4. 3.4  Install strut -2-  .
   1. 3.4.1  Position strut -2-  and clip in clip -4-  on coolant hoses -1-  .
   2. 3.4.2  Fit and tighten screws -3-  .

      > Tightening torque 65 N.m (48 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

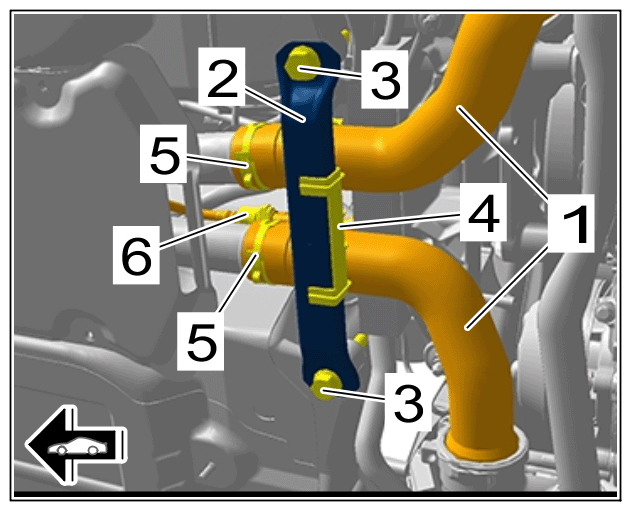

Coolant hoses at the underbody
