WM, 1001IN Tools For Removing/Installing Units And Working On Assembly Support: Tools

Tool denomination	Type	Tool number	Image

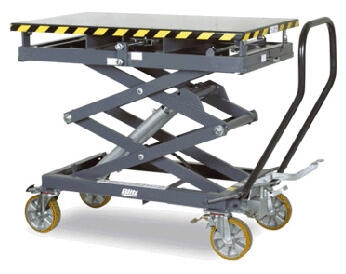

Master Gear unit elevating platform	Vehicle-specific workshop equipment	>VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

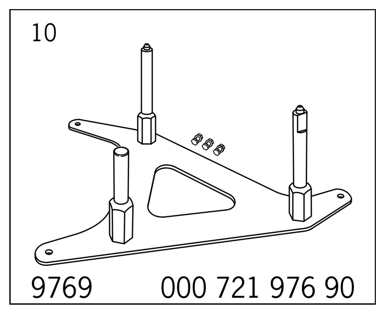

Retainer plate	Special tool	>9769	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

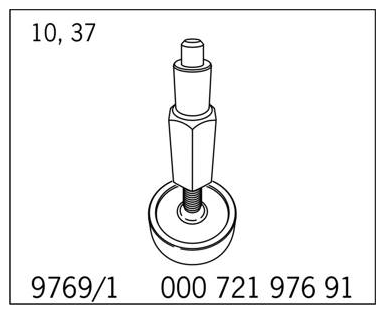

Support	Special tool	>9769/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
strapping belts	Special tool	>9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

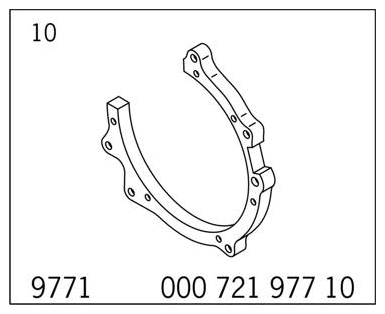

engine adapter	Special tool	>9771	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

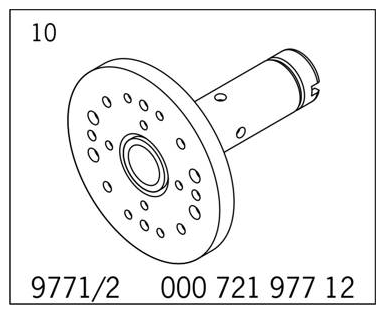

Engine support	Special tool	>9771/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

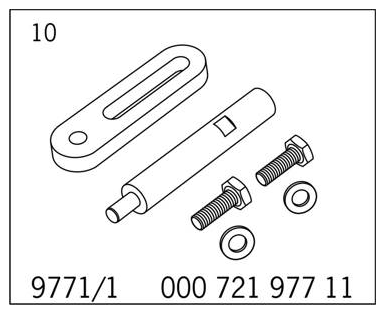

Mounting set	Special tool	>9771/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engine and Gearbox Support	General workshop equipment	>VAS 6095A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
mounting parts	Special tool	>9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
