Lifting And Securing The Engine

  1. Raise the engine to installation position using the required lifting tool and secure it.
    1. 1.1  Fit and tighten nuts on the engine carrier -2-  .

      > Tightening torque 65 N.m (48 ft lb.)

    G16219123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

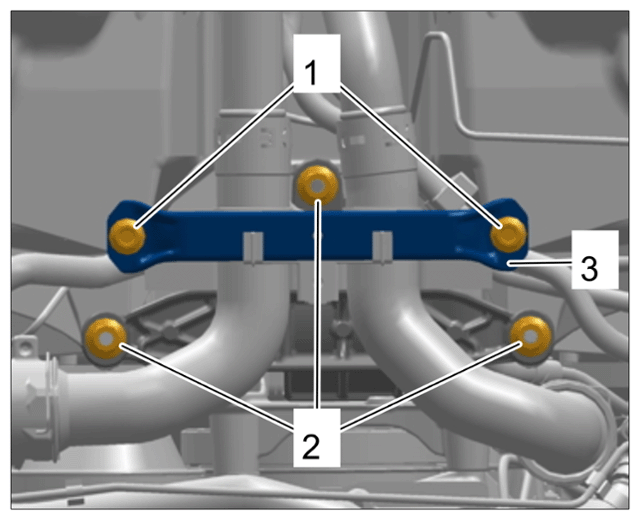

    Engine mount and coolant hose holder

  2. Remove lifting tool.
