Installing Oil Pan (Upper Part)

Information

Sealing faces must be free of oil and grease!

1. Insert new seals on upper part of oil pan -1 to 3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

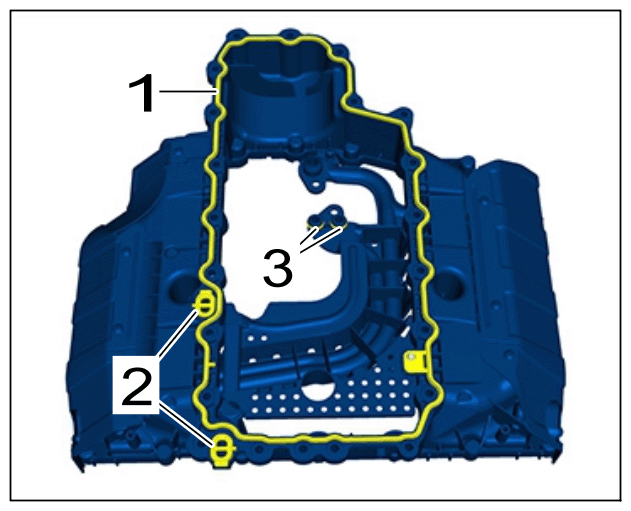

   Seals on oil pan (upper part)

2. Install oil pan (upper part) -24-  .
   1. 2.1  Position oil pan (upper part) -24-  and fit screws -1 to 23-  .
   2. 2.2  Tighten screws in the sequence -1 to 22-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

   3. 2.3  Tighten screws on line bracket -23-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

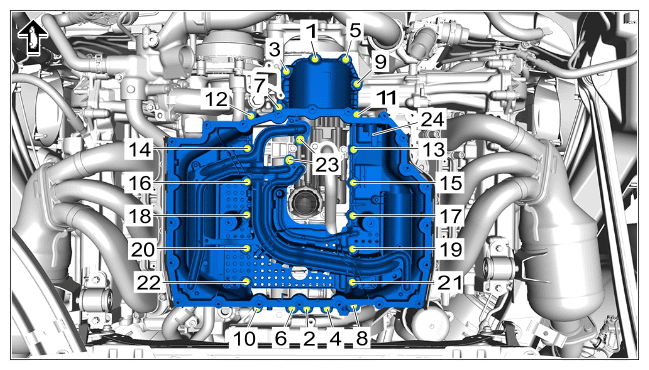

      Fig 1: Oil Pan Screws Tightening Sequence (Upper Part)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Oil pan (upper part)

3. Install wiring harness for oil pump control valve -1-  in oil pan (upper part) -2-  .
   1. 3.1  Position wiring harness for oil pump control valve -1-  in oil pan (upper part).
   2. 3.2  Clip in retaining clip -4-  .
   3. 3.3  Clip electric line -5-  into the bracket -6-  .
   4. 3.4  Connect and lock electric plug connection -3-  .

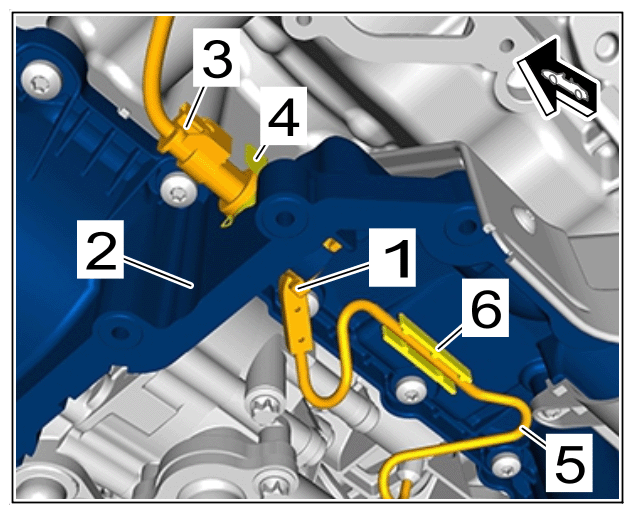

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for oil pump control valve

   Information

   Sealing faces must be free of oil and grease!

4. Insert new  seals on coolant guide.
5. Install coolant guide -1-  .
   1. 5.1  Place coolant guide -1-  in installation position.
   2. 5.2  Fit and tighten screws -2 and 3-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

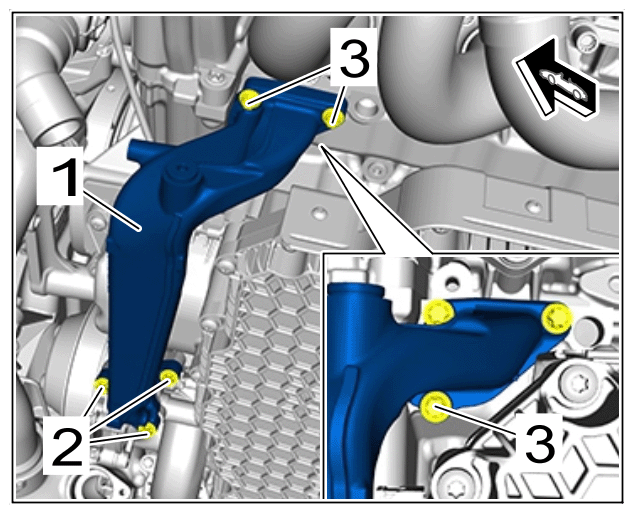

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Lower coolant guide

6. Insert new  O-rings on lower coolant pipe.
7. Install lower coolant pipe -1-  .
   1. 7.1  Position lower coolant pipe -1-  .
   2. 7.2  Connect coolant hose -5-  .
   3. 7.3  Fit and tighten screw -3-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

   4. 7.4  Fit and tighten screw -2-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

   5. 7.5  Fasten spring band clamp -4-  using > VAS 6890 - spring band clamp pliers  .

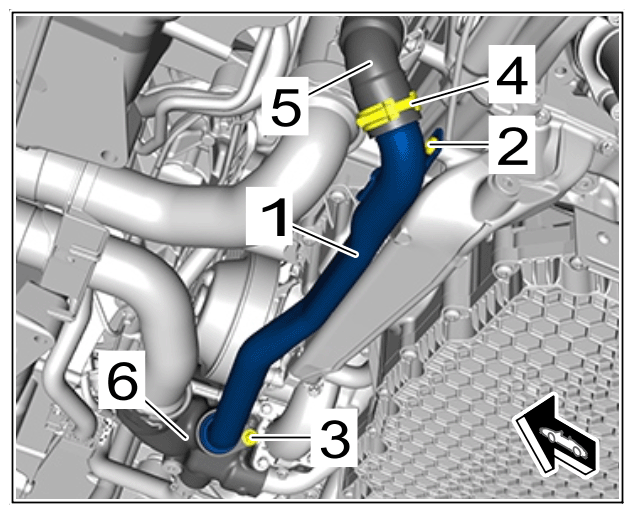

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe
