Installing Oil Pan (Lower Part)

Information

Sealing faces must be free of oil and grease!

1. Fit new seals -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

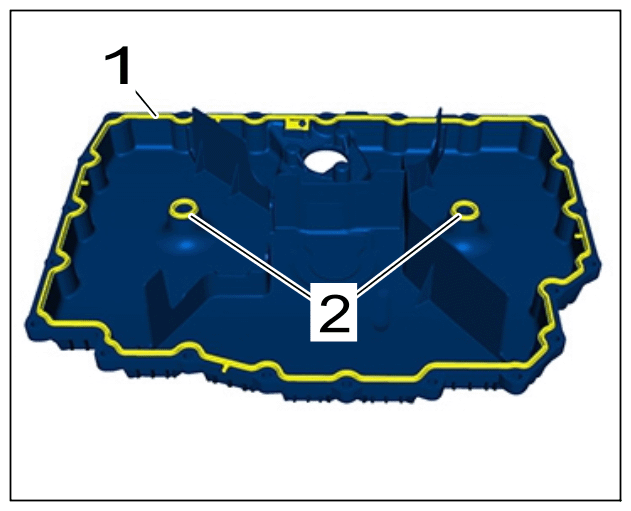

   Seals on (lower part of) oil pan

2. Install (lower part) -25-  of oil pan.
   1. 2.1  Position oil pan (lower part -25-  ) and screw -1 to 24-  in screws.
   2. 2.2  Tighten screws in the sequence -1 to 24-  .

      > Tightening torque 13 N.m (9.5 ft lb.)

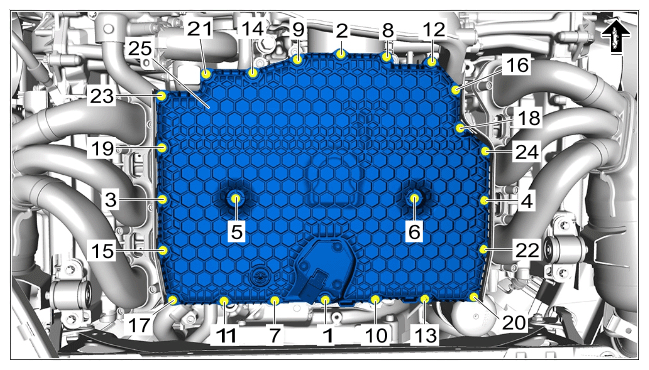

      Fig 1: Oil Pan Screws Tightening Sequence (Lower Part)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Oil pan (lower part)

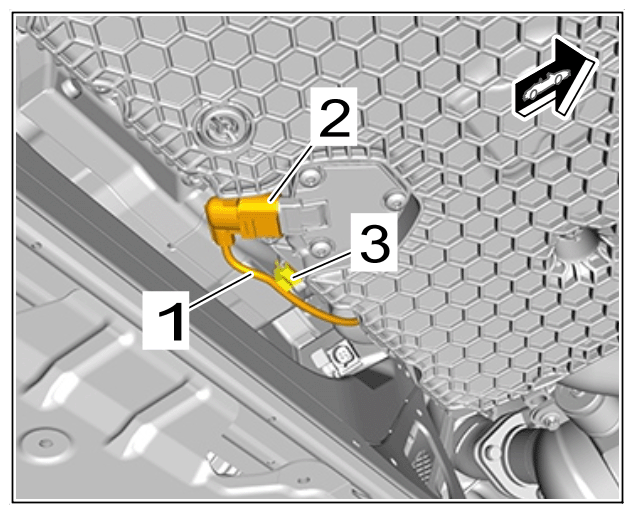

3. Secure electric line for oil level sensor -1-  .
   1. 3.1  Position electric line for oil level sensor -1-  .
   2. 3.2  Connect and lock electric plug connection -2-  .
   3. 3.3  Clip in clip -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for oil level sensor
