Installing Oil Pump

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

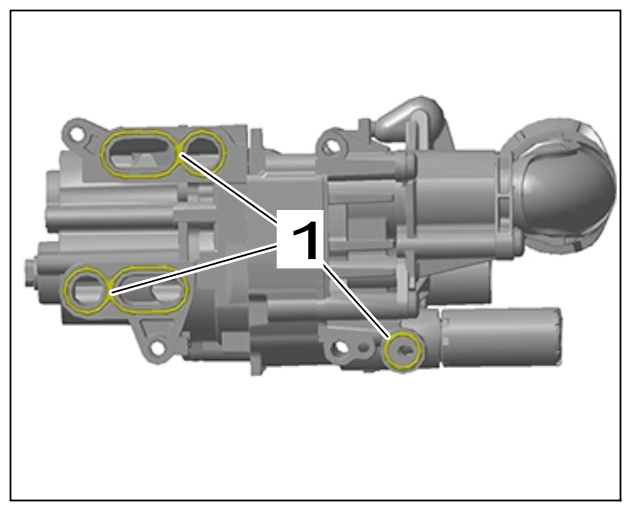

Replace sealing rings -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing rings

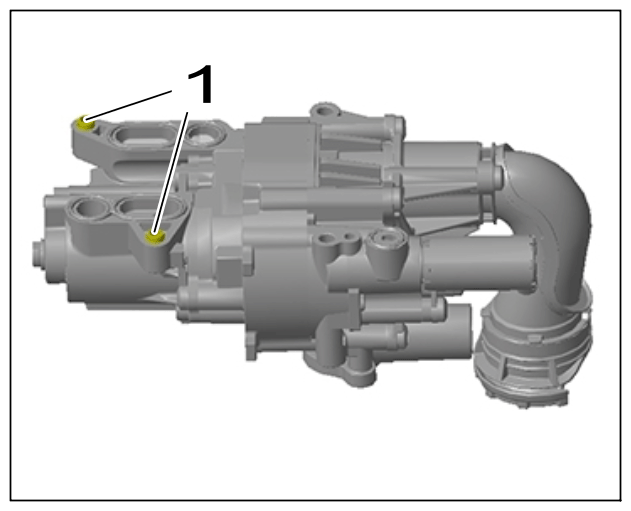

Check that all dowel sleeves -1- are fitted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dowel sleeves

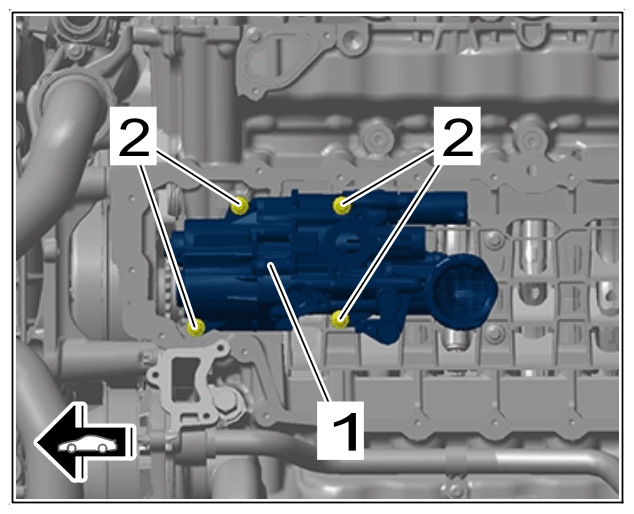

Position oil pump -1- .

3.1 Fit screws -2- , but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump

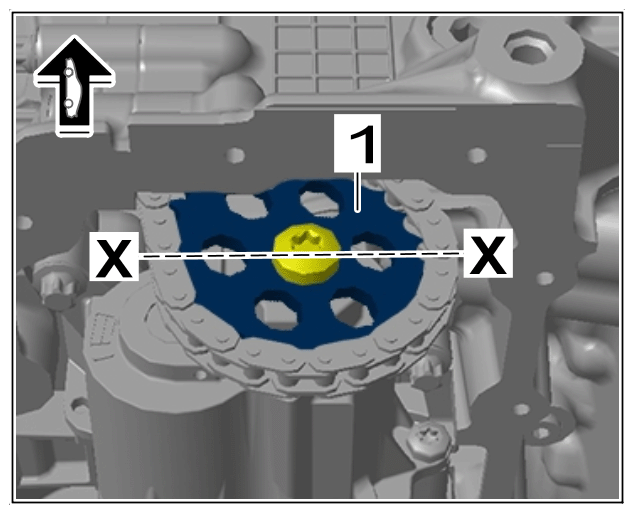

Check the position of the sprocket -1- . Make sure that the two bores are positioned horizontally -Line X- for inserting the > 9791 - retaining device .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of oil pump sprocket

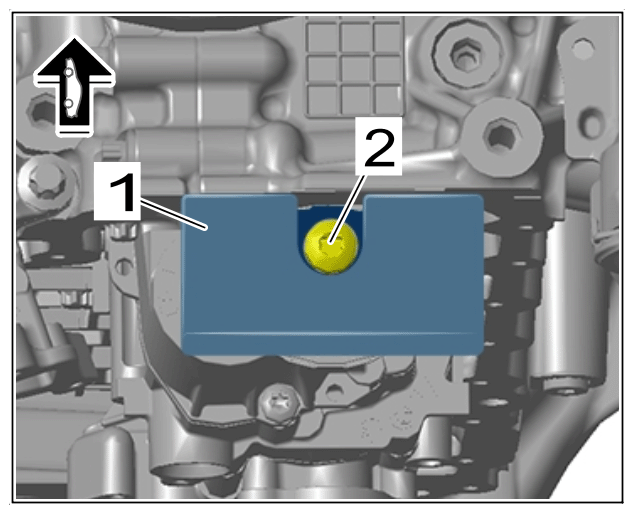

Secure the sprocket.
1. 5.1 > 9791 - Retaining device-1- must be attached to the sprocket.
2. 5.2 Screw in and tighten new screw -2- .
  > Initial tightening 20 N.m (15 ft lb.)

  > Torque angle 45°
3. 5.3 > 9791 - Retaining device-1- must now be removed from the sprocket.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sprocket screw

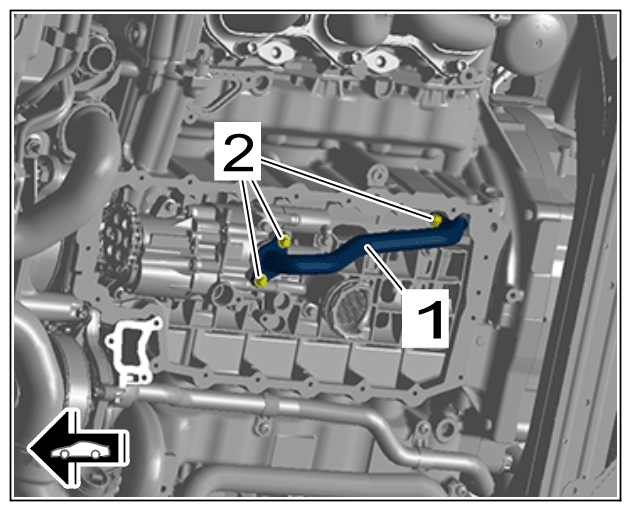

Install oil pipe -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pipe
1. 6.1 Position oil pipe -1- with new sealing rings.
2. 6.2 Fit and tighten screw -2- .
  > Tightening torque 13 N.m (9.5 ft lb.)
