Installing Rear Muffler

1. 2.1  Position rear silencer -1-  on > VAS 6931 - engine and gearbox jack  in the vehicle from below.
2. 2.2  Attach rear silencer -1-  with > VAS 6931 - engine and gearbox jack  to the exhaust flanges on the particle filters -6-  .
3. 2.3  Lay tension straps -4-  in the holder -5-  .
4. 2.4  Tighten screws for tension straps -4-  .

   > Tightening torque 10 N.m (7.5 ft lb.)

5. 2.5  Connect vacuum lines -3-  and secure using new  clamps -2-  and > 3340A - pliers  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

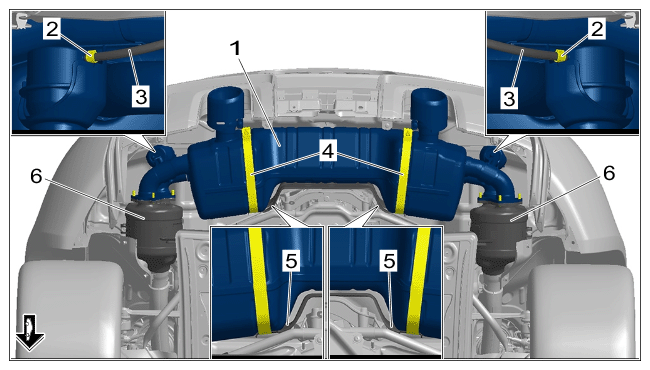

Rear silencer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

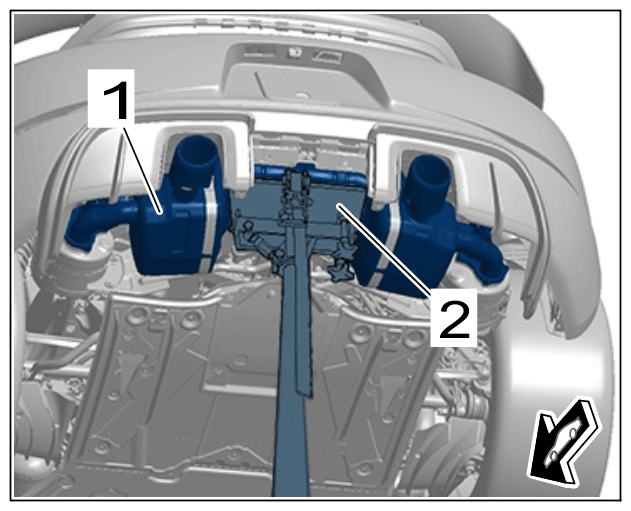

Rear silencer on VAS 6931 engine and gearbox jack

1. 4.1  Screw on new  exhaust flange nuts -3-  and tighten.

   > Tightening torque 23 N.m (17 ft lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

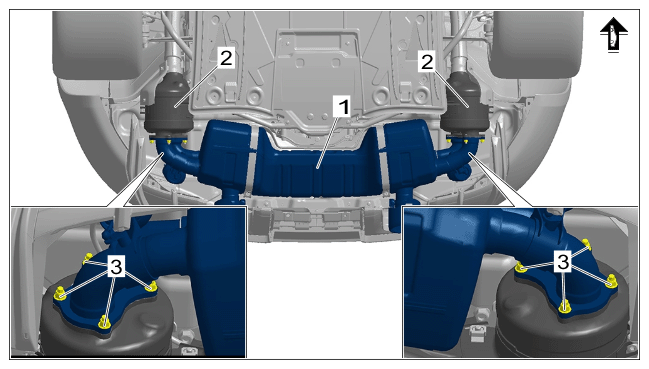

   Rear silencer on particle filter
