Installing Rear Muffler

1. 2.1  Position rear silencer -1-  on > VAS 6931 - engine and gearbox jack  in the vehicle from below.
2. 2.2  Fit rear silencer -1-  on > VAS 6931 - engine and gearbox jack  by moving it forward onto the exhaust flanges on the particle filters.
3. 2.3  Connect vacuum lines -3-  and secure using new  clamps -2-  and > 3340A - pliers  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

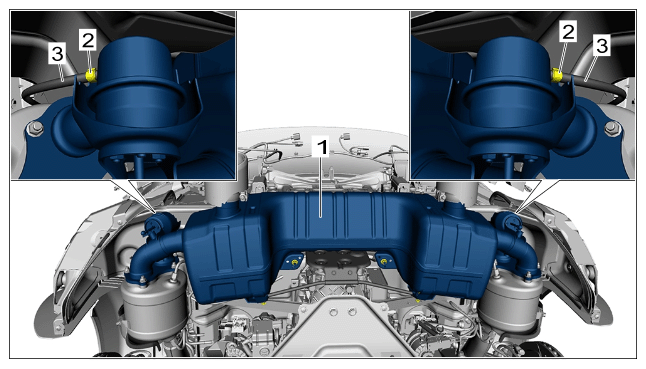

Vacuum line

1. 3.1  Position rear silencer -1-  on rear exhaust system mount.
2. 3.2  Position silencer holder -6-  on rear exhaust system mount.
3. 3.3  Fit and tighten screws for rear exhaust system mount at the top -3-  .

   > Tightening torque 8 N.m (6 ft lb.)

4. 3.4  Fit and tighten screws for rear exhaust system mount at the bottom -2-  .

   > Tightening torque 8 f6 ft lb.) N.m

5. 3.5  Tighten nuts -4-  and counter at the hexagon -5-  at the same time.

   > Tightening torque 23 N.m (17 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

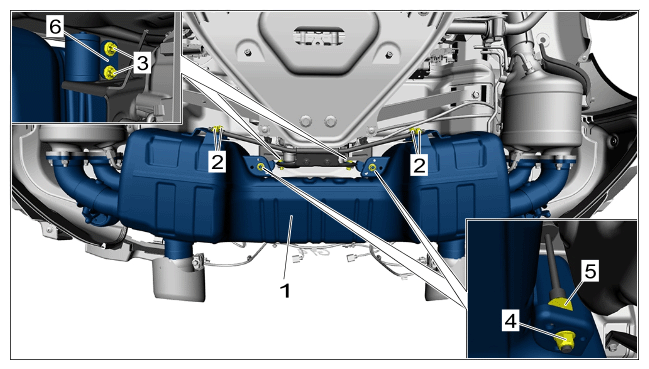

Rear silencer on rear exhaust system mount

1. 4.1  Screw on new exhaust flange nuts -3-  and tighten.

   > Tightening torque 23 N.m (17 ft lb.)

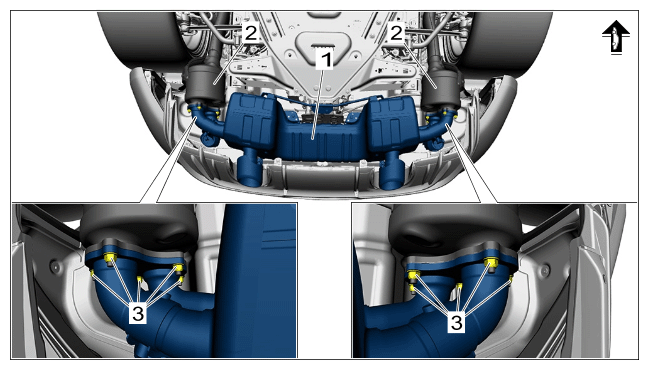

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear silencer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

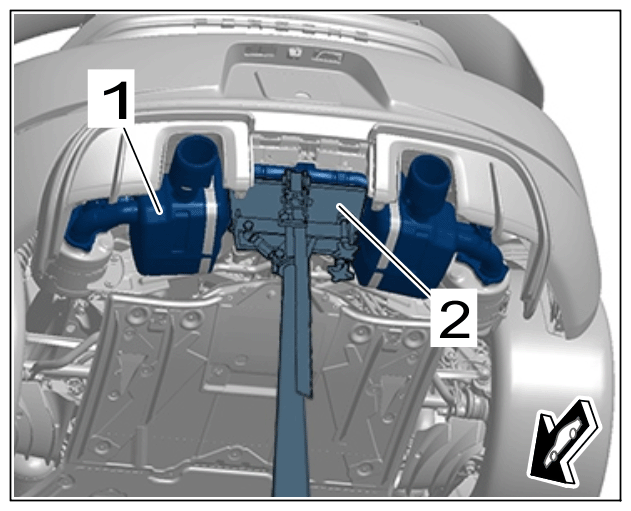

Rear silencer on VAS 6931  engine and gearbox jack
