Installing Connecting Link For Anti-Roll Bar

1. Installation is performed in reverse order.

1. 1.1 Tighten fastening nuts to the specified tightening torque.

Connecting link to anti-roll bar -1-  : > Initial tightening 40 N.m (29.5 ft lb.)  > Final tightening + 30°

Connecting link to wheel bearing housing -2-  : > Initial tightening 50 N.m (36.9 ft lb.)  > Final tightening + 180°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

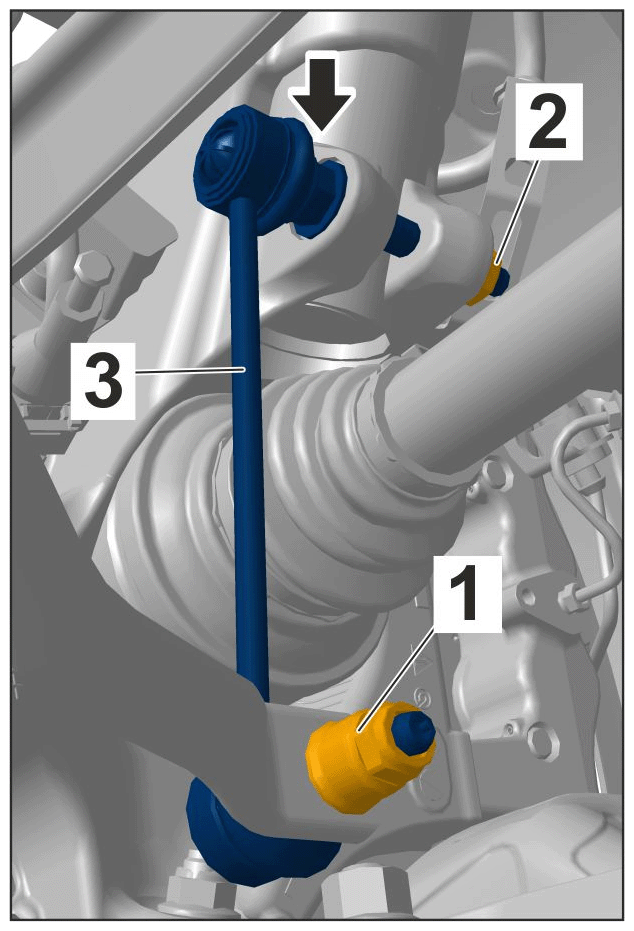

Mounting for connecting link
