Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...
Connecting link to anti-roll bar	Collar nut, M10/replace	Initial tightening	40 N.m (29.5 ft lb.)
Connecting link to anti-roll bar	Collar nut, M10/replace	Final tightening	+ 30°

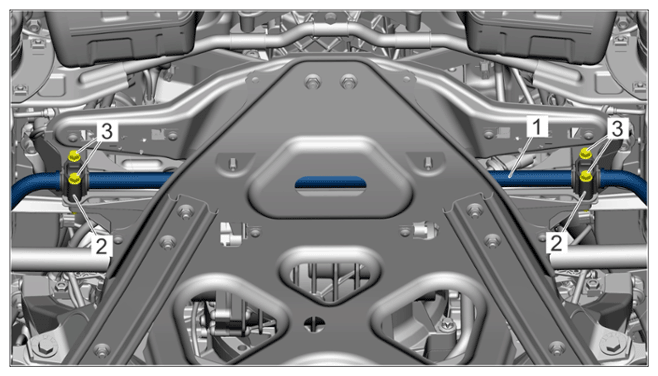

Anti-roll bar mount GT4/718 Spyder/GT4 RS	Item 3: M8 x 60 hexagon-head bolt/replace after each disassembly	Initial tightening	20 N.m (14.8 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount GT4/718 Spyder/GT4 RS	Item 3: M8 x 60 hexagon-head bolt/replace after each disassembly	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
