Removing Anti-Roll Bar

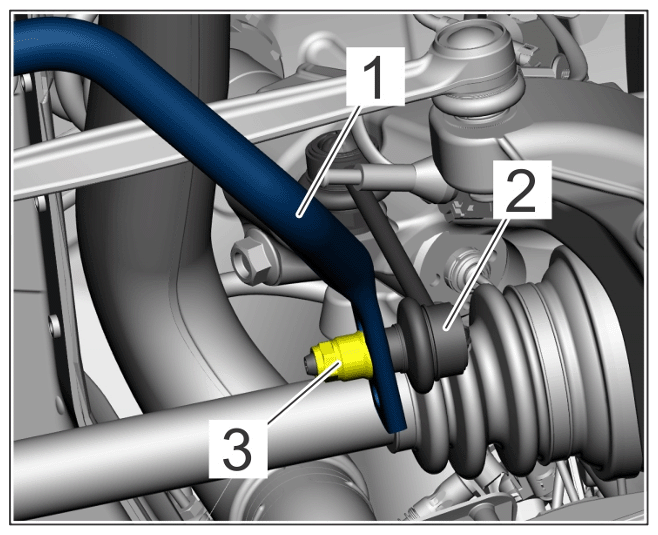

Loosen anti-roll bar -1- at connecting links -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar to connecting link
1. 1.1 Unscrew collar nut -3- and counter at the ball-joint pin using a Torx bit insert.
2. 1.2 Replace collar nut.

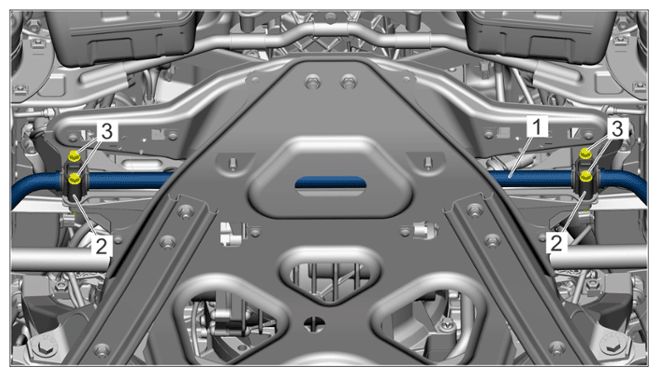

Loosen bearing cover -2- on anti-roll bar -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar mount
1. 2.1 Unscrew screws -3- and remove bearing cover.
2. 2.2 Replace screws.
Extend anti-roll bar sideways.
