Installing Anti-Roll Bar

1. Fit connecting link -2-  on both sides of anti-roll bar -1-  .

   Position of bore in the middle  !

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

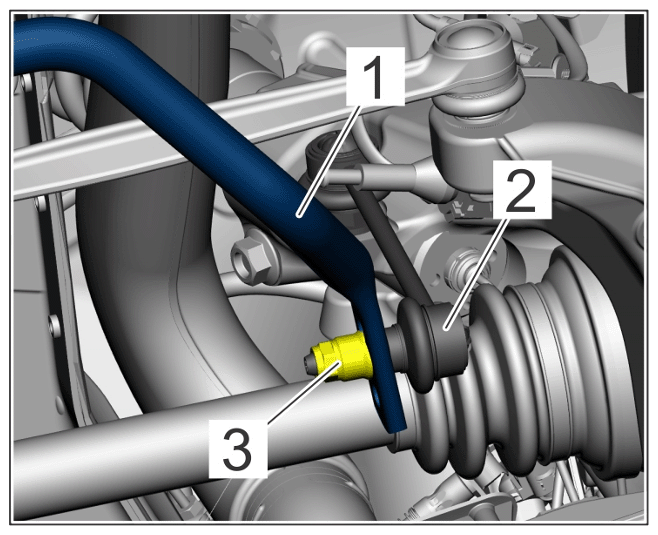

   Anti-roll bar to connecting link

   1. 1.1 Attach new collar nuts -3-  while holding the ball joint bolt in place with a Torx screwdriver.

   > Initial tightening 40 N.m (29.5 ft lb.)  > Final tightening + 30°

2. Secure bearing cover -2-  for anti-roll bar -1-  .

Check that the rubber mountings are positioned correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

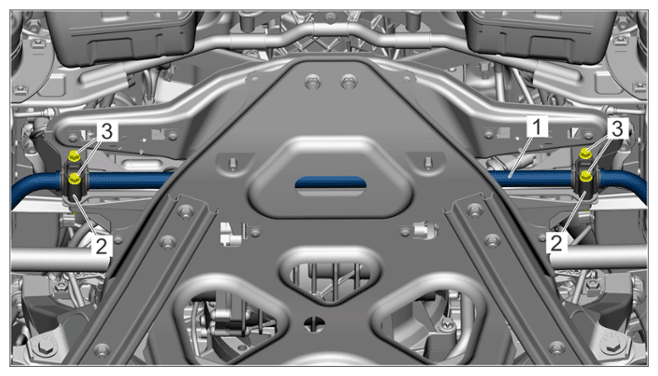

Anti-roll bar mount

1. 2.1 Fit and tighten new screws -3-  .

   > Initial tightening 20 N.m (14.8 ft lb.)  > Final tightening torque angle + 90°
