Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...
Steering tie rod to wheel bearing housing	Replace lock nut, M12 x 1.5	Tightening torque	85 N.m (62.7 ft lb.)
Trailing arm to wheel bearing housing (GT4/Spyder)	Screw M12 x 1.5 x 95	Tightening torque	120 N.m (88.5 ft lb.)
Drive shaft to transmission flange (PDK and manual transmission)	Cheese head bolt, M10 x 46.5 (for 982)/M10 x 52/always replace bolts with plates following removal	Initial tightening for	35 N.m (25.8 ft lb.)
Drive shaft to transmission flange (PDK and manual transmission)	Cheese head bolt, M10 x 46.5 (for 982)/M10 x 52 (for 982 S/GTS)/Screws with plates following removal	Final tightening	+ 90°
Front drive shaft to wheel hub	Lock nut, M22 x 1.5/always replace following removal	Tightening torque	460 N.m (339.3 ft lb.)
Drive shaft to transmission flange (PDK and manual transmission)	Item 1: Cheese head screw M10 x 52/replace screws with base plate after every removal	Tightening torque	81 N.m (59.7 ft lb.)
Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes)	M12 x 1.5/Different screw length on front and rear axle (see allocation in PET).	Tightening torque	85 N.m (62.7 ft lb.)

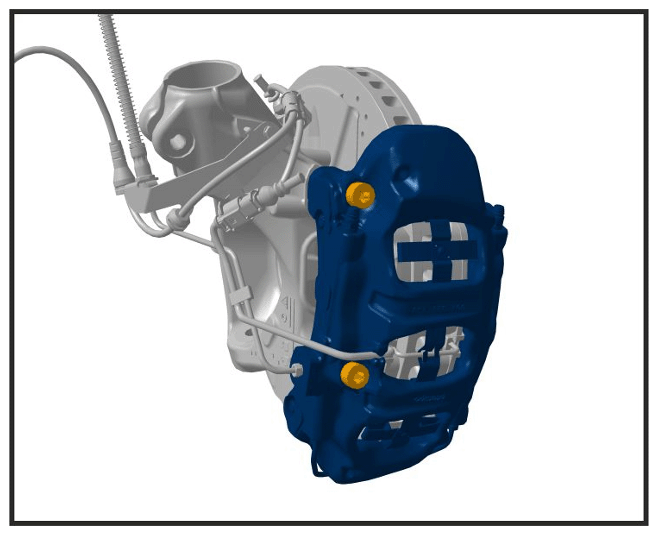

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Brake calliper to wheel bearing housing, front and rear axle for new screws (PCCB and grey cast iron brakes)	M12 x 1.5/new screws/different screw length on front and rear axle (see allocation in PET).	Initial tightening	30 N.m (22.1 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Brake calliper to wheel bearing housing, front and rear axle for new screws (PCCB and grey cast iron brakes)	M12 x 1.5/new screws/different screw length on front and rear axle (see allocation in PET).	Final tightening	+ 75°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Holder to wheel bearing housing	Screw with washer assembly, M6 x 16	Tightening torque	10 N.m (7.5 ft lb.)
Connecting link to anti-roll bar	Collar nut, M10/replace	Initial tightening	40 N.m (29.5 ft lb.)
Connecting link to anti-roll bar	Collar nut, M10/replace	Final tightening	+ 30°
