Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...
Lower trailing arm to rear axle carrier side part (camber eccentric adjuster)	M12 x 1.5	Tightening torque	110 N.m (81.1 ft lb.)
Diagonal control arm to trailing arm lower	Hexagon-head bolt, M14 x 1.5 x 75 + hexagon nut	Tightening torque	160 N.m (118 ft lb.)
Trailing arm to wheel bearing housing (GT4/Spyder)	Screw M12 x 1.5 x 95	Tightening torque	120 N.m (88.5 ft lb.)

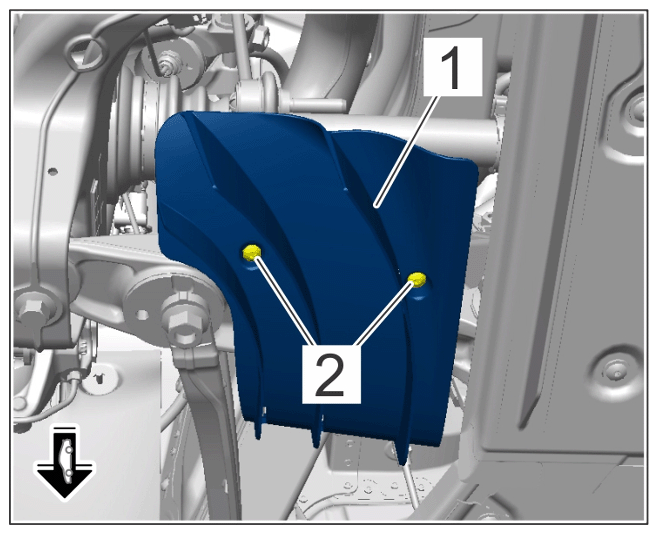

Lower air guide section to upper section	Item 2: M5 x 16 screw	Tightening torque	3.2 N.m (2.4 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide rear lower section

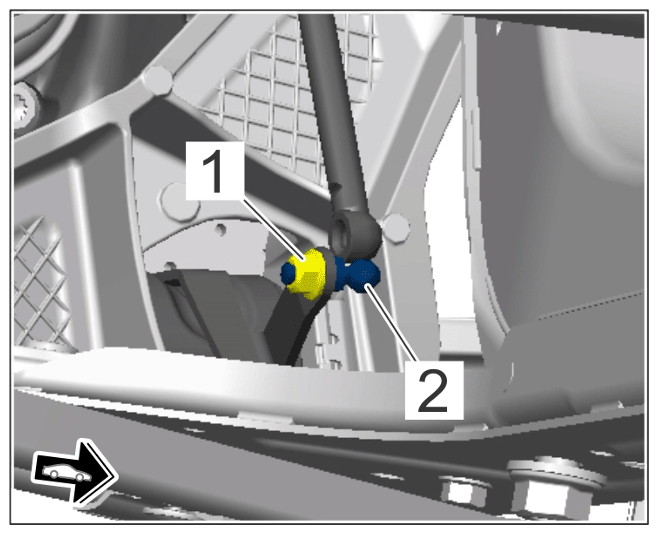

Ball pin for level sensor linkage to trailing arm holder	Item 1: Replace M6 lock nut	Tightening torque	10 N.m (7.4 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball pin for level sensor linkage
