Removing Rear Trailing Arm

1. Remove air guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

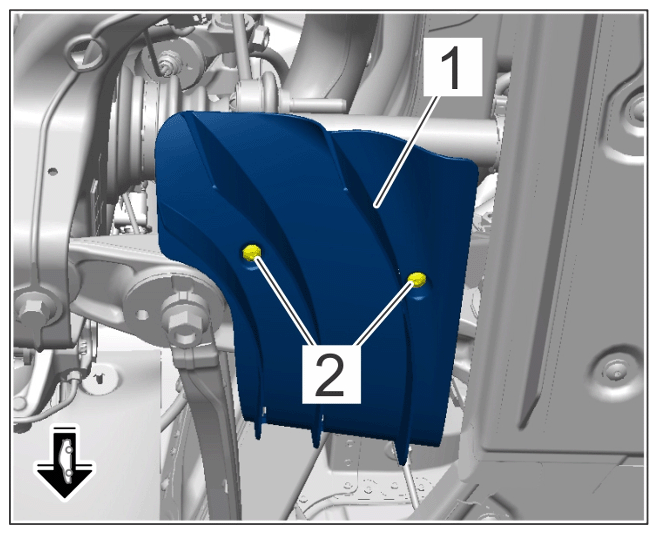

   Air guide lower section

   1. 1.1 Unscrew and remove screws -2-  .
   2. 1.2 Remove air guide lower section.
   3. 1.3 Unclip upper section -3-  on the trailing arm and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

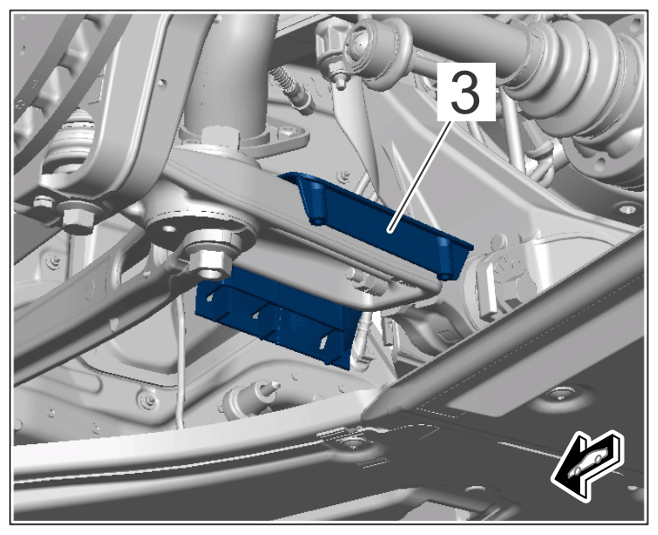

   Rear air guide, upper section

2. Loosen level sensor linkage -1-  from the holder on the trailing arm -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

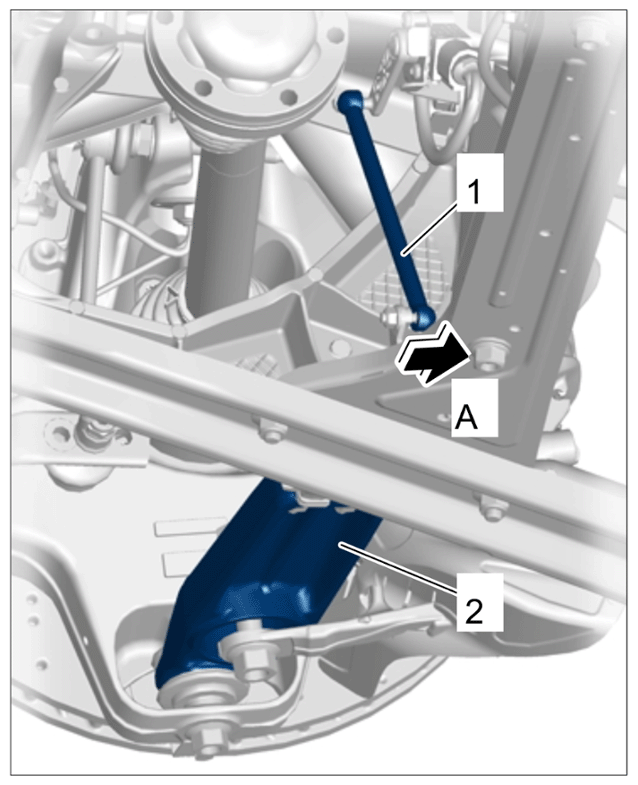

   Loosening level sensor linkage

   1. 2.1 Pull linkage off the ball head -arrow A-  .
3. Unscrew lock nut -1-  on the ball pin -2-  and counter at the square of the ball pin at the same time. Replace lock nut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

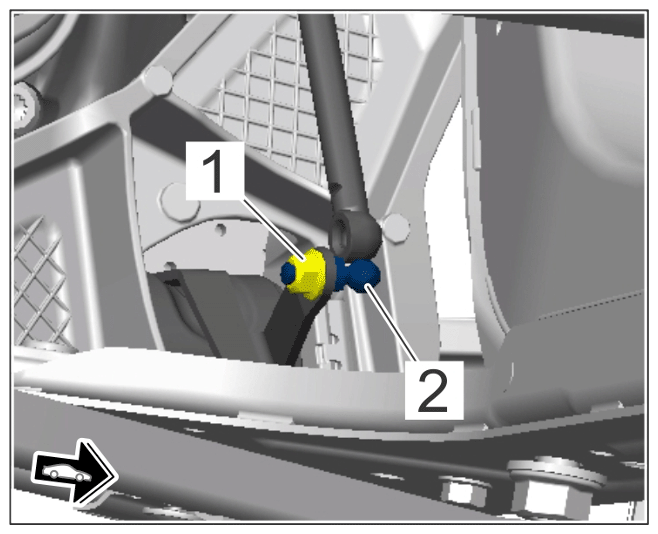

   Ball pin for level sensor linkage

4. Remove trailing arm -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

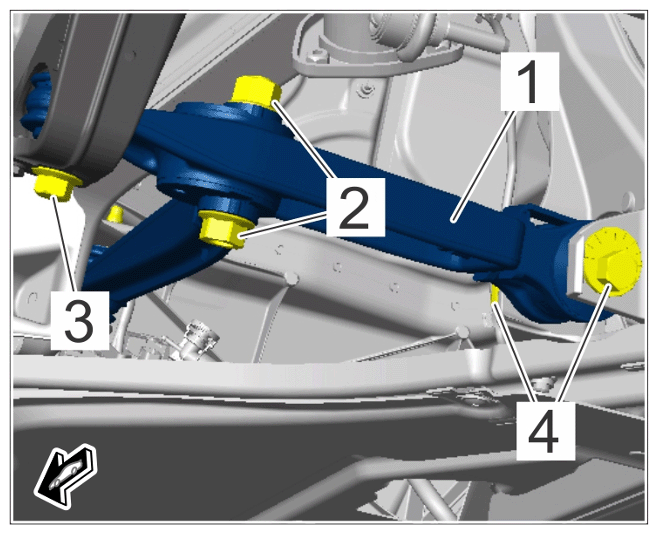

Mounting for rear trailing arm

1. 4.1 Mark the position of the camber eccentric adjuster -4-  on the rear-axle carrier side section.
2. 4.2 Loosen threaded joints -2 to 4-  in sequence and remove screws and nuts.
3. 4.3 Replace lock nuts -2 and 4-  on the threaded joints.
