Notes About Adjustment Work On The Spring Struts

NOTE: Spring strut comes out of the damper tube

PASM (damping force adjustment) does not function
Risk of damage to electric lines
→ Protect electric lines when removing and installing the spring strut.

→ Do not lift/transport the spring strut/vibration damper at the electric lines.

→ Do not damage electric lines when transporting, unpacking, storing or disassembling and assembling the spring strut.

The spring strut has a thread and a height-adjusting nut -2- for adjusting the ride height of the vehicle. The height adjustment nut -2- is secured against twisting by the lock nut -1- .

The height-adjusting nut -2- and lock nut -1- are not available as a spare part (supplied with replacement dampers).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

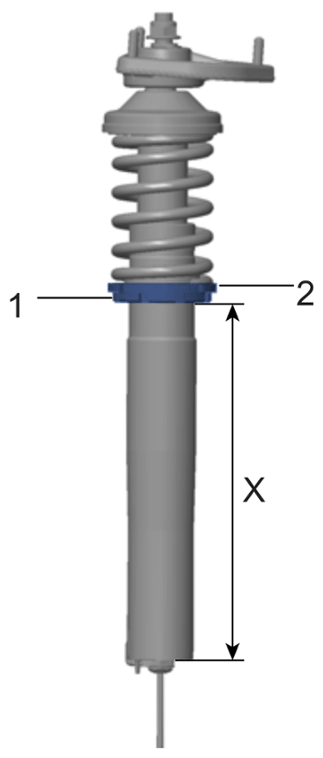

Adjustment dimension on spring strut

1	Lock nut (grooved nut)/> Tightening torque 50 N.m (36.9 ft lb.)
2	Height-adjusting nut (grooved nut)
X	Pre-set dimension for production: GT4/Spyder: 276.3 mm/GT4 RS: 272.4 mm . The dimension may be different for the prescribed vehicle height. If the damper is to be replaced, use the same actual dimension for the new damper.
