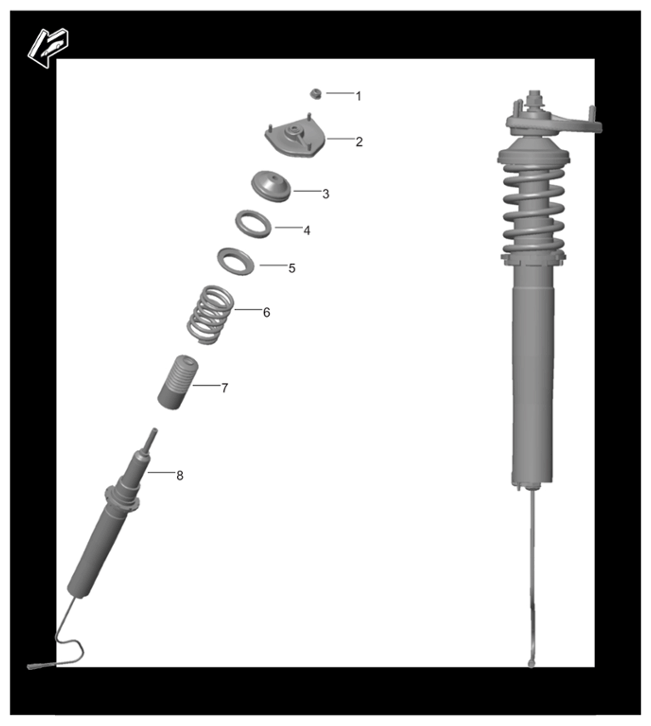

Component And Assembly Overview
Front spring strut
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -1- | Hexagon nut M14 x 1.5 | 1 | Before loosening the hexagon nut, pre-tension the coil spring using a spring tensioner (not generally required/depends on the setting (installation pretension of coil spring). Loosen the hexagon nut using > 3078 - socket-wrench insert, a/f 22 . Counter at the piston rod (7-mm hexagon socket) when loosening (and tightening) the nut. |
Use a new hexagon nut. > Tightening torque 70 N.m (51.6 ft lb.) |
| -2- | Spring-strut mount/dust bellows assembly | 1 | Remove assembly. | Identical parts on left and right side. |
| -3- | Concave washer upper part | 1 | Replace if necessary. | |
| -4- | Deep-groove ball bearing | 1 | Replace if necessary. | |
| -5- | Concave washer lower part (coil spring plate) | 1 | Replace if necessary. | |
| -6- | Coil spring | 1 | Replacement parts are only available as a set. Technically, there is no prescribed installation position. Install so that the inscription (Made in Germany and manufacturers specifications) can be read. | |
| -7- | Bellows | 1 | Replace if necessary. | |
| -8- | Vibration damper with lock nut (grooved nut) and height-adjusting nut | 1 | Identical parts on left and right side. If the vibration damper needs to be replaced, use the same adjustment dimension X on the new part. |
