Preliminary Work

  1. Remove front wheel.

    > 440519 REMOVING AND INSTALLING WHEEL .

  2. Unscrew hexagon nut -1-  securing wheel hub to tension bolt using > 9471 - socket wrench  . Another person is needed in order to actuate the service brake.

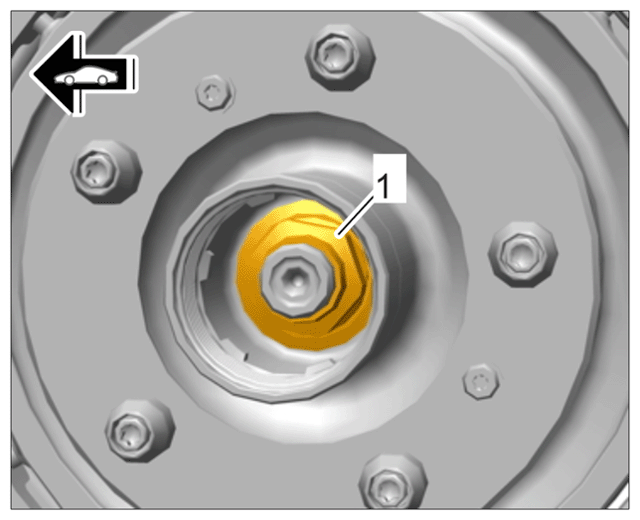

    G16222070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hexagon nut for wheel hub at tension bolt

    1. 2.1 Replace hexagon nut  .
  3. Remove front brake disc.

    For PCCB,

    > 465119 Removing and installing front PCCB brake disc - section on  "REMOVING "

    For steel brakes,

    > 465019 Removing and installing front brake disc - section on  "REMOVING ".
