Removing Front Wheel Bearing Housing

Information

• If assembly work was performed or parts were replaced that affect the vehicle height, complete suspension alignment is necessary.
• Protect electric lines when removing and installing the spring strut on vehicles with PASM.
• Do not lift/transport the spring strut/vibration damper at the electric line.
• The ignition must be switched off before disconnecting the plug connection (PASM) for the spring strut.
• The spring strut and wheel bearing housing are removed from the vehicle together.
• A helper is needed in order to take out the spring strut/wheel bearing housing.

1. Remove front brake calliper with line bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

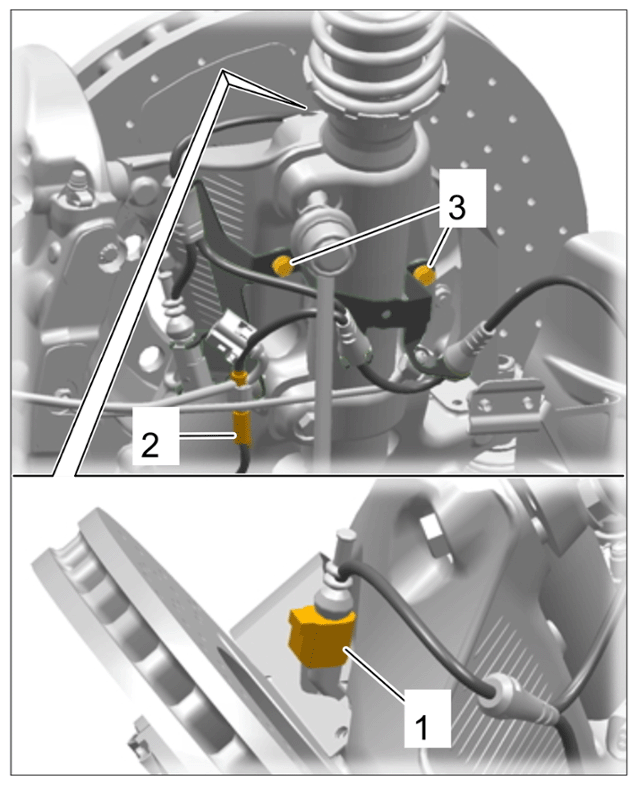

   Holder on wheel carrier

   1. 1.1 Release and disconnect electric plug connection for rpm sensor -1-  .
   2. 1.2 Release and disconnect electric plug connection for PASM -2-  .
   3. 1.3 Unscrew screws -3-  securing holder to wheel bearing housing.
   4. 1.4 Evenly set back brake pads a little using water pump pliers.
   5. 1.5 Unscrew and remove screws -Arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

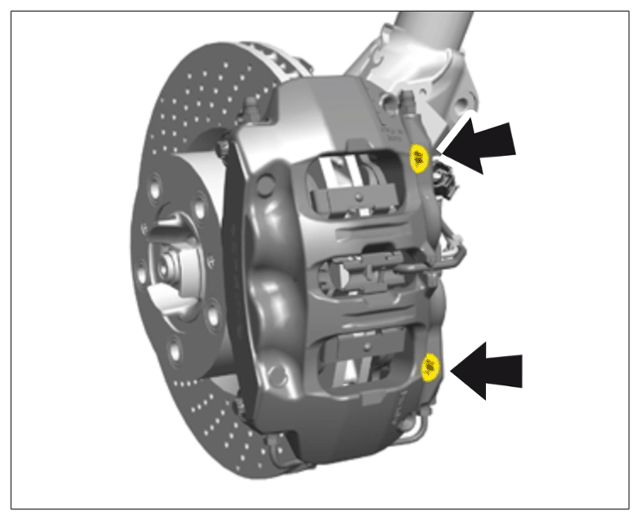

      Brake calliper screws (shown as an example)

   6. 1.6 Remove brake calliper together with the holder from the wheel bearing housing and hang it at a suitable position in the wheel housing using a piece of wire, for example. Make sure that the brake pressure line is not strained.

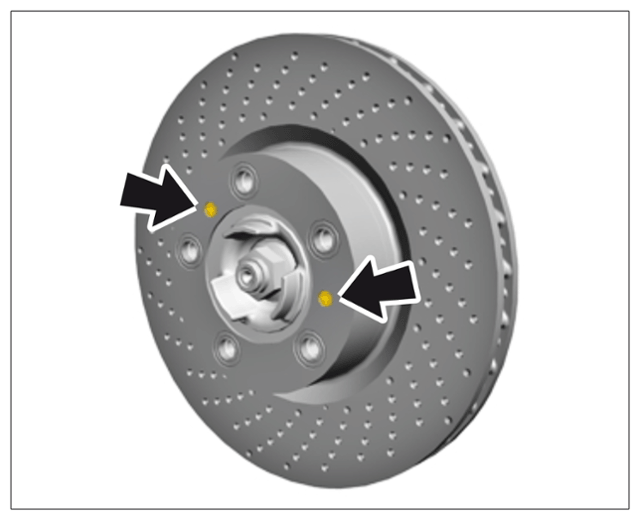

2. Unscrew screws -Arrows-  and remove brake disc.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake disc screws

3. Remove connecting link -1-  from wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

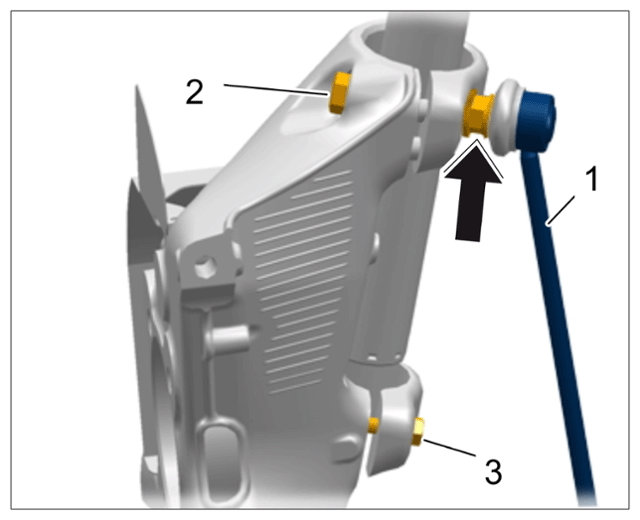

   Spring strut to wheel bearing housing

   1. 3.1 Unscrew collar nut -2-  and pull out connecting link -1-  .

      Counter at the hexagon wrench face of the connecting link -arrow-  when loosening the collar nut.

4. Loosen collar nut on the tie-rod ball -1-  at the wheel bearing housing and press off ball joint using special tool > 9560 - press-out tool  .

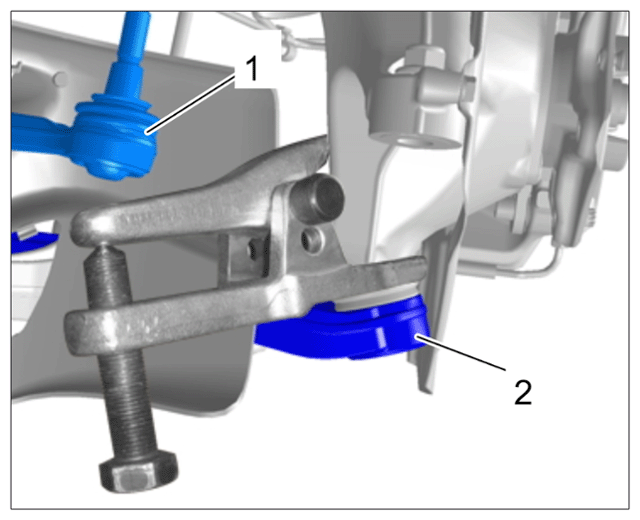

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing ball joint

5. Remove lower trailing arm -5-  at the wheel carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

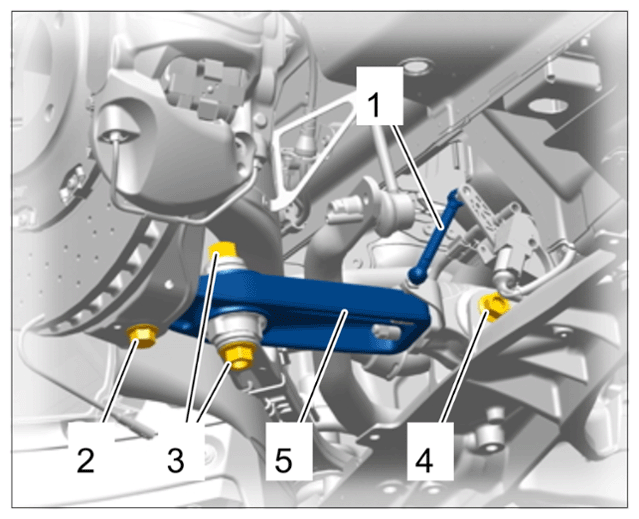

   Mounting for lower trailing arm

   1. 5.1 Remove level sensor linkage at the holder -1-  .
      1. 5.1.1 Unscrew nut and counter at the square part of the ball joint while doing this.
      2. 5.1.2 Pull linkage out of the holder.
   2. 5.2 Unscrew screw -2-  .
6. Mark installation position of the spring-strut mount (position of the collar nuts -1-2-3-  ). Loosen lock nuts on the spring-strut mount.

   Secure the wheel bearing housing to prevent it from falling down!

   Fig 1: Spring-Strut Mount Nuts Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

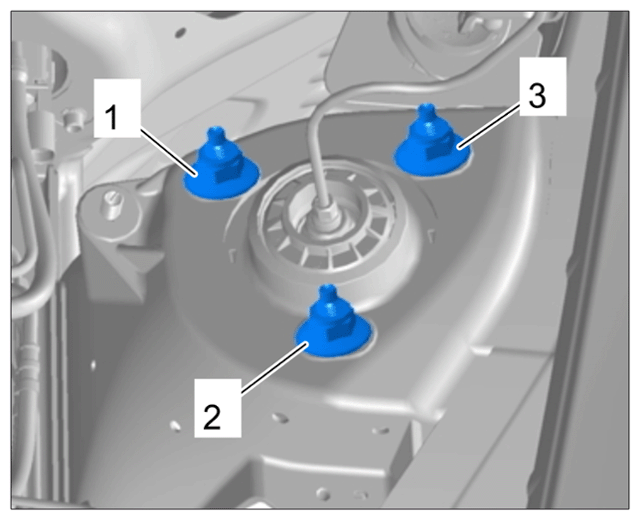

   Installation position of spring-strut mount

7. Pull out/remove spring strut with wheel bearing housing.
8. Loosen clamped connection between spring strut and wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring strut to wheel bearing housing

1. 8.1 Unscrew screw -3-  .
2. 8.2 Pull spring strut out of the wheel carrier.
