Removing Lower Trailing Arm

1. Remove control arm spoiler (air guide for brake cooling) on the trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

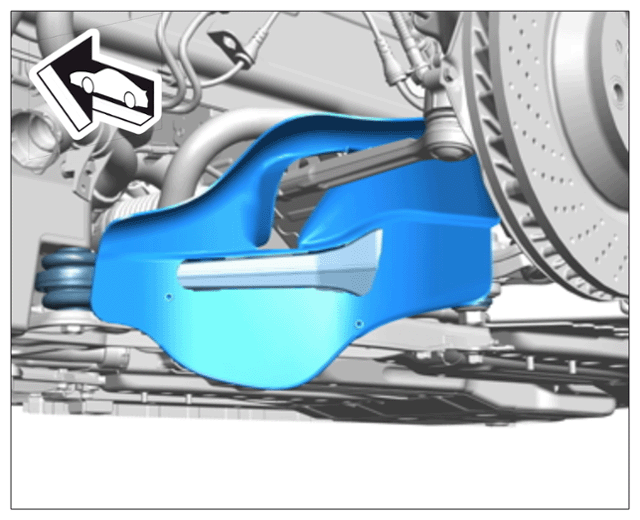

   Control arm spoiler

2. Remove lower trailing arm -5-  .

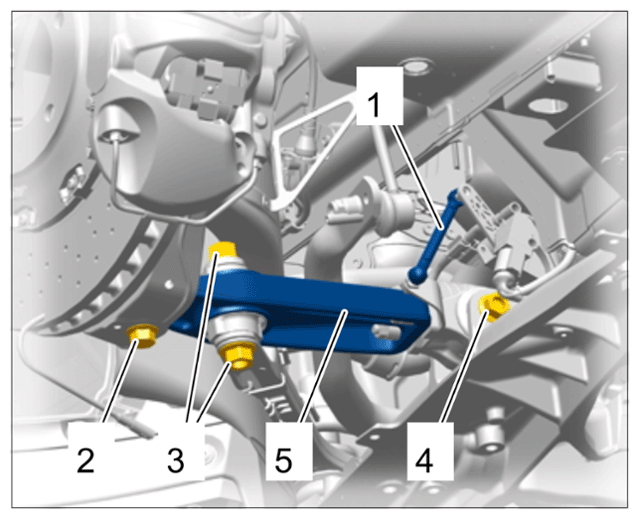

Fig 1: Lower Trailing Arm Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm

1. 2.1 Remove level sensor linkage at the holder -1-  .
   1. 2.1.1 Unscrew collar nut and counter at the square part of the ball joint while doing this.
   2. 2.1.2 Pull linkage out of the holder.
2. 2.2 Loosen threaded connections -2 to 4-  .
