Removing Front-Axle Cross Member

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

Information

When removing the front-axle cross member, the following parts remain on the front-axle cross member:

G16221998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

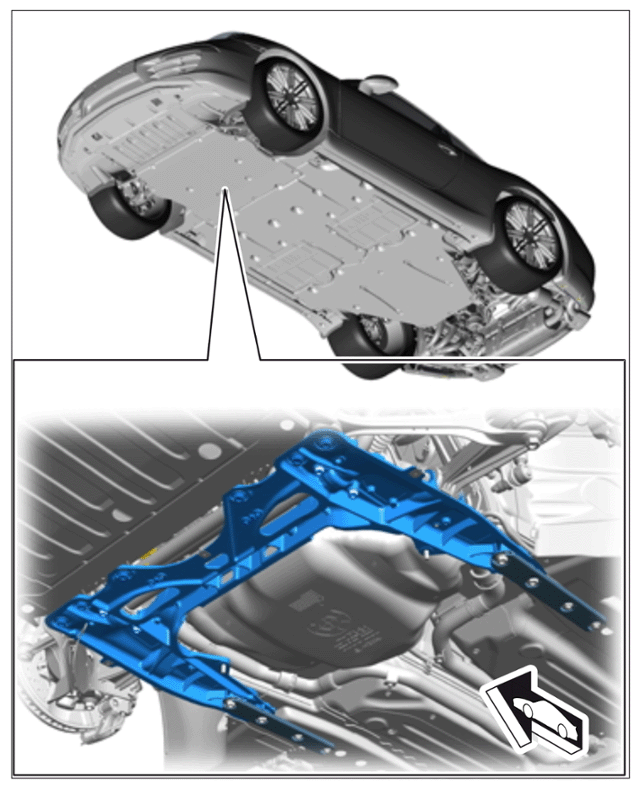

Installation position of front-axle cross member (shown as an example/no longitudinal struts fitted on the 982)

Information

Secure steering wheel with wheels in straight-ahead position (engage steering column lock or clamp steering wheel in center position with steering-wheel holder).

  1. Disconnect universal joint from the steering gear.

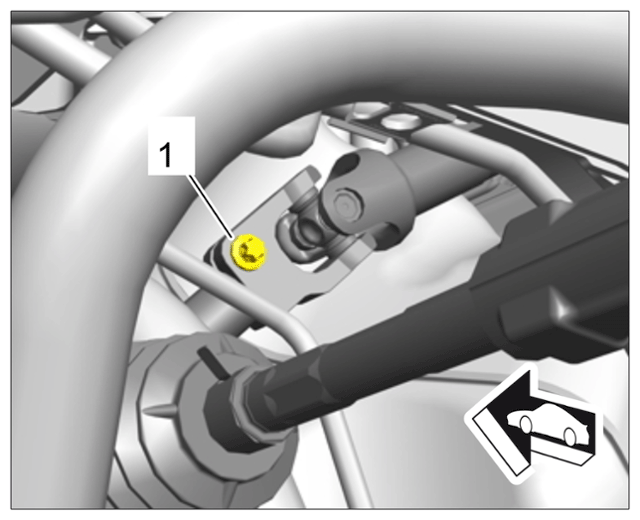

    G16221999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Universal joint for steering column

    1. 1.1 Unscrew fastening screw -1-  on universal joint.
  2. Remove connecting links on both sides of the vehicle from the anti-roll bar.
    G16222000Courtesy of PORSCHE CARS NORTH AMERICA, INC.

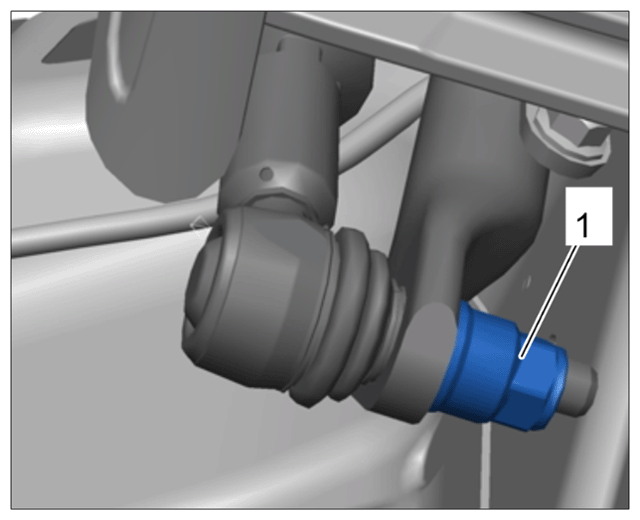

    Lower connecting link mounting

    1. 2.1 Unscrew fastening nut -1-  . To unscrew the fastening nut, counter with a > 9546 - screwdriver  at the ball-joint pin.
    2. 2.2 Remove ball-joint pin from the bore in the anti-roll bar.
  3. Remove tie rods on both sides of the vehicle from the wheel bearing housing.

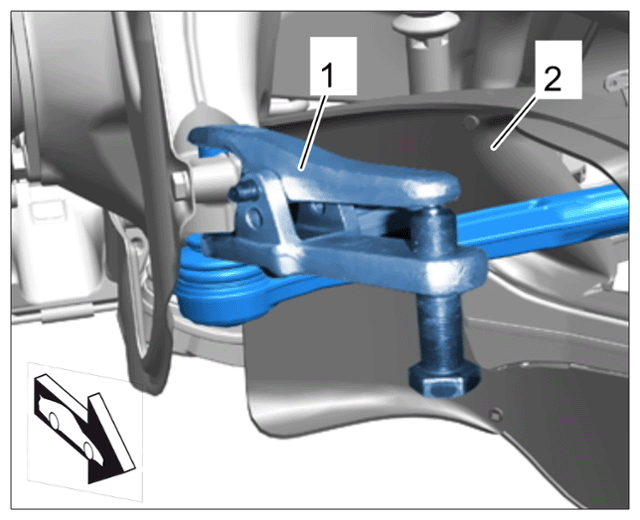

    G16222001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing off ball joint on tie rod

    1. 3.1 Unscrew lock nut and use a > 9546 - screwdriver  to counter at the ball-joint pin.
    2. 3.2 Coat the bellows and press-out tool with tyre mounting paste to prevent damage to the bellows on the ball joint.
    3. 3.3 Press off tie-rod ball joint using > 9560 - press-out tool-1-  .
  4. Unclip and remove control arm spoiler (air guide for brake cooling) at the back of the diagonal arm.

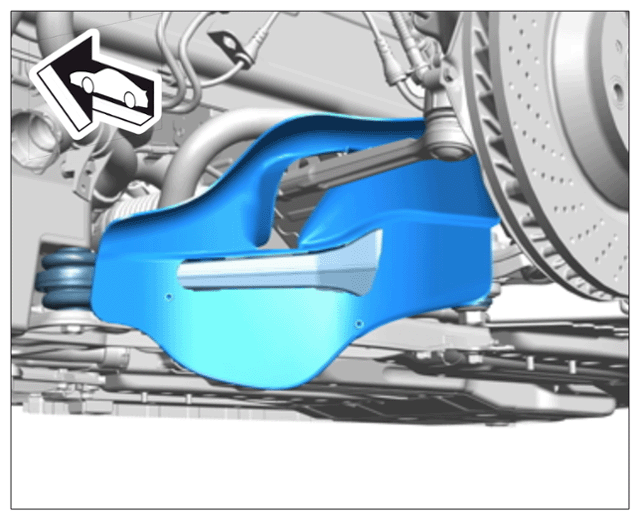

    G16222002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm spoiler

  5. Remove lower trailing arm on both sides of the vehicle from the wheel bearing housing.

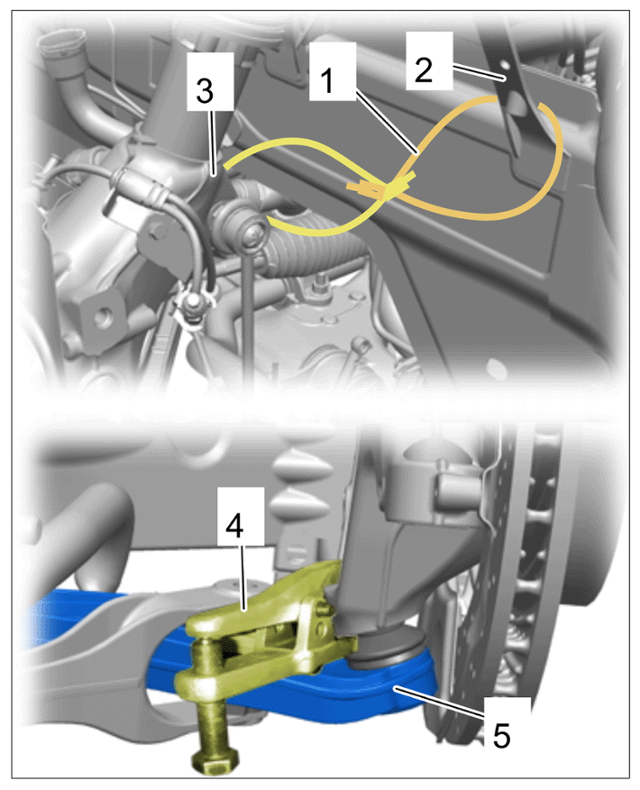

    G16222003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lower trailing arm from wheel bearing housing

    1. 5.1 Secure the spring strut in the wheel bearing housing to the body using a cable strap -1-  to avoid putting extra strain on the spring strut mount.
      1. 5.1.1 Pull the cable strap through behind the clamping screw (shock-absorber pipe clamp) -3-  on the spring strut and secure it to the rear opening on the spring strut mount -2-  .
    2. 5.2 Coat the bellows and press-out tool with tyre mounting paste to prevent damage to the bellows on the ball joint.
    3. 5.3 Unscrew fastening nut on the ball joint of the lower trailing arm -5-  and press off the ball joint using > 9560 - press-out tool-4-  .
  6. Loosen ball joint on the level sensor linkage -1-  from the lower trailing arm on both sides of the vehicle.

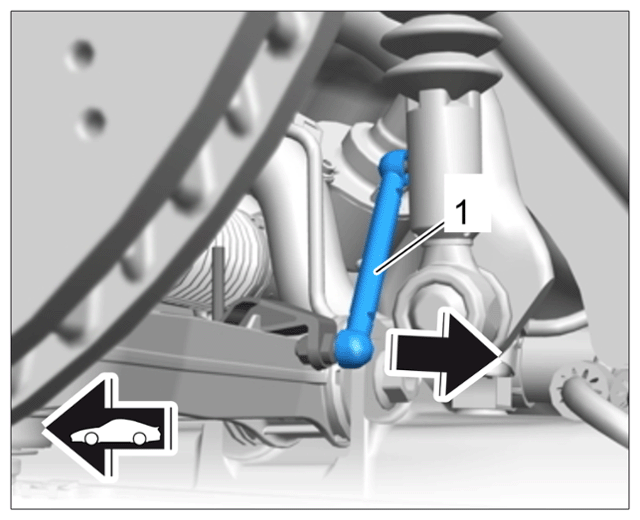

    G16222004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ball joint on level sensor

  7. Loosen level sensor mounting and coolant pipe on both sides of the vehicle.

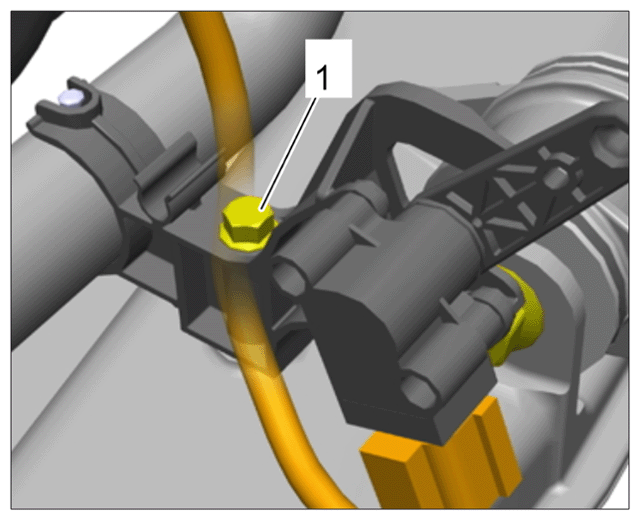

    G16222005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Level sensor mounting

    1. 7.1 Unscrew fastening screw -1-  .
  8. Remove front-axle cross member.
    Fig 1: Front-Axle Carrier Screws Loosening Sequence

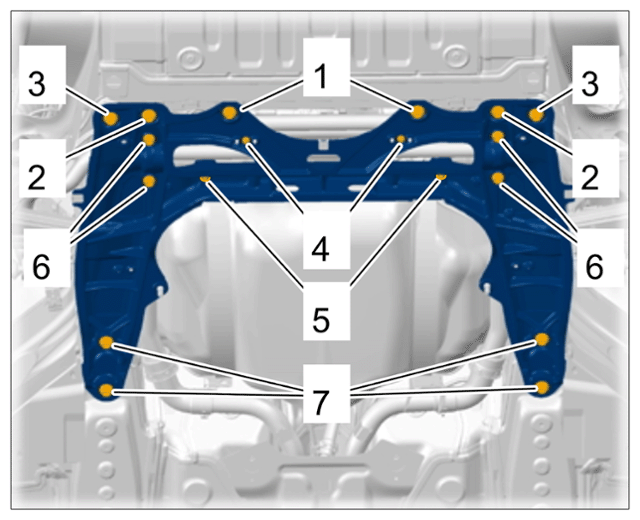

    G16222006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-axle carrier

    1. 8.1 Support the front-axle cross member with a hydraulic lift (use a hard rubber base or wooden block).
    2. 8.2 Unscrew fastening screws -7-  .
    3. 8.3 Unscrew fastening screws -4-  and loosen clips on the bracket for the coolant pipes.
    4. 8.4 Unscrew fastening nuts -2-  on the front-axle cross member and counter at the bolt using a Torx wrench.
    5. 8.5 Unscrew fastening screws -1 and 3-  .
    6. 8.6 Lower the front-axle cross member as far as required until you have enough room to disconnect the plug connections for the steering gear.
  9. Release and unplug battery connector -2-  and vehicle signal connector -3-  from the steering gear motor. The torque sensor connector -1-  (connector at the very top) remains connected.

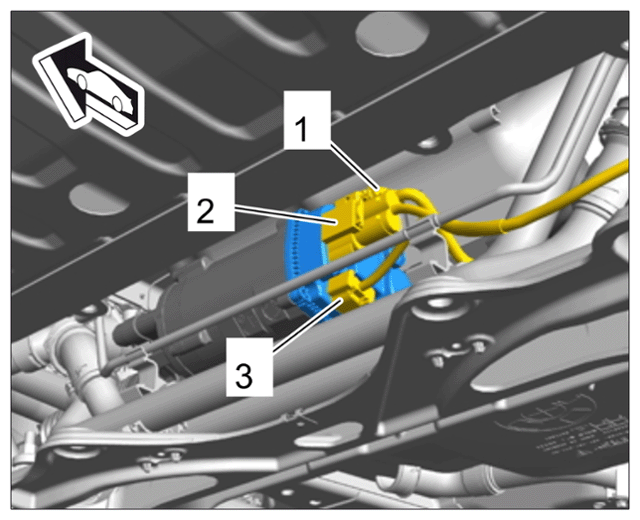

    G16222007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connectors on steering gear control unit with front-axle cross member lowered

  10. Remove front-axle cross member. To do this, lower the front-axle cross member using a hydraulic lift.
