Removing Front-Axle Support

1. Disconnect electric plug connection -3-  on the TPM control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   RDK control unit

2. Unscrew fastening screws -3-  for coolant pipes.
3. Unscrew fastening nuts and fastening screws -2-  .
4. Swivel the front-axle support -1-  down and disengage retaining straps for the fuel tank -arrows-  .

   Information

   Different fuel tank trays are used depending on the vehicle type.

5. Remove fuel tank tray -4-  by moving it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

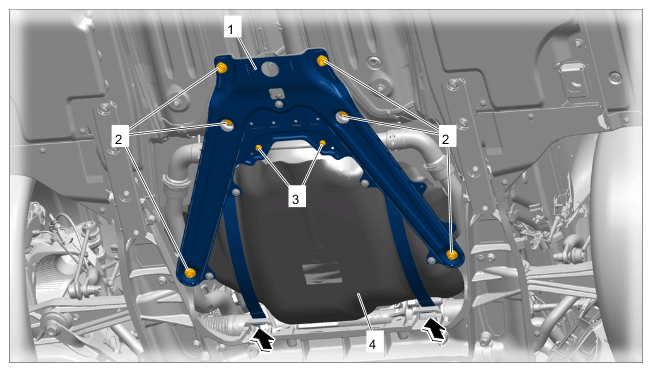

Front-axle support
