Installing Front-Axle Support

  1. Installation is performed in reverse order.

    Observe specified tightening torques:

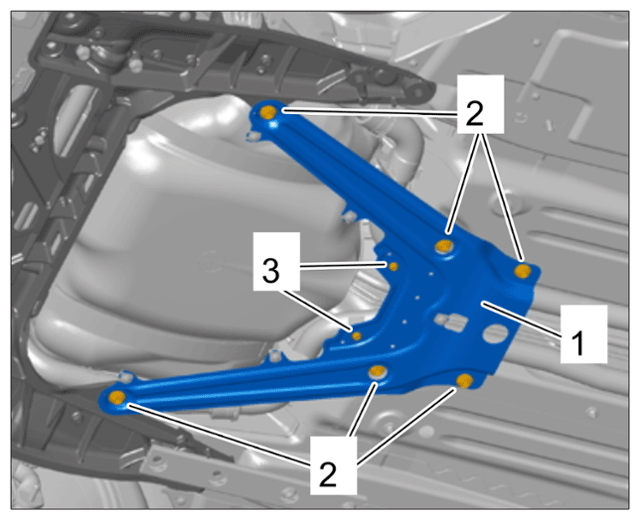

    G16221988Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1  Front-axle support
    2  Hexagon-head bolt/hexagon nut (M10) > Tightening torque 65 N.m (47.9 ft lb.)
    3  Hexagon-head bolt (M6) > Tightening torque 10 N.m (7.4 ft lb.)
