Remove Front-Axle Support

Information

Different fuel tank trays are used depending on the vehicle type.

1. Disconnect cable plug -3-  on the TPM control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   TPM control unit

2. Remove front-axle support. -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

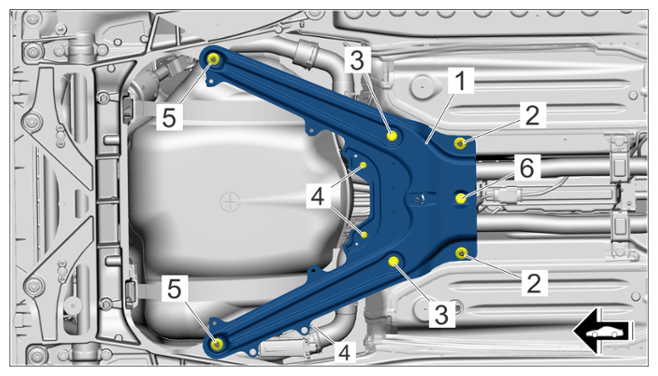

   Front-axle support - GT4/GT4 RS/Spyder

   1. 2.1 Screw off hexagon nut -2-  .
   2. 2.2 Unscrew center hexagon-head bolt -3-  .
   3. 2.3 Unscrew screws securing -4-  coolant pipes to support.
   4. 2.4 Screw off front hexagon nut -5-  .
   5. 2.5 Swing the front-axle support down and unhook the fuel tank retaining straps on the front axle beam.
3. Remove fuel tank tray by moving it downwards.
