Install Front Axle Support

1. Installation is performed in reverse order.

   Observe specified tightening torques:

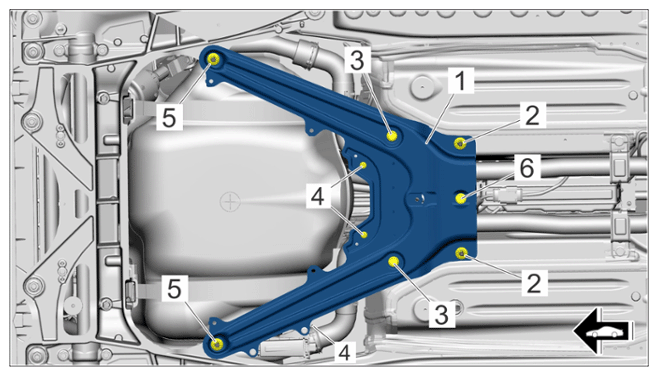

   Fig 1: Front Axle Support Component Location With Torque Specification - GT4 / GT4 RS / Spyder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front axle support - GT4/GT4 RS/Spyder

   1	Position front axle support and engage retaining straps on the front axle carrier.
   2	Hexagon nut, M10 > Tightening torque 65 N.m (47.9 ft lb.)
   3	Hexagon screw, M10 > Tightening torque 65 N.m (47.9 ft lb.)
   4	Hexagon screw, M6 > Tightening torque 10 N.m (7.4 ft lb.)
   5	Hexagon nut, M10 > pre-tightening 65 N.m (47.9 ft lb.)  > untighten - 270°  > final tightening 30 N.m (22.1 ft lb.)  > final-tightening + 45°
   6	Hexagon screw, M10 x 30 > Tightening torque 25 N.m (18.4 ft lb.)

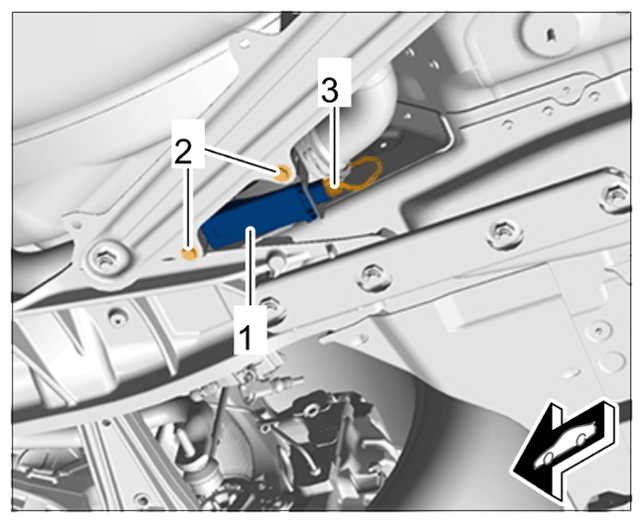

2. Connect cable plug -3-  to the TPM control unit -1-  and check that it is seated securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TPM control unit
