Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

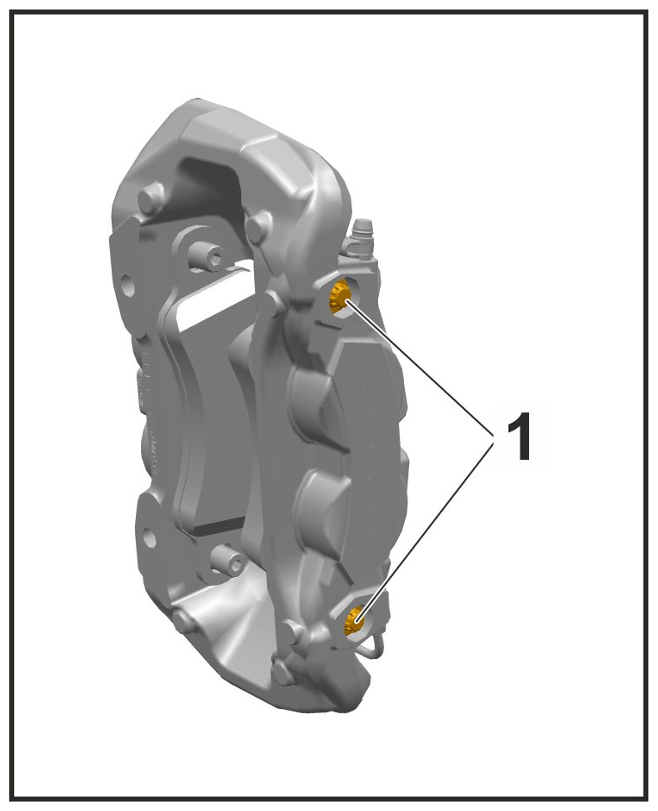

| Brake calliper screws on pad retaining pin | Item 1: The brake calliper screws may only be replaced in the event of a complaint (corrosion)/replace screws after removal | Initial tightening | 10 N.m (7.4 ft lb.) | ||
|
Brake calliper screw on pad retaining pin |
|||||
| Brake calliper screws on pad retaining pin | Item 1: The brake calliper screws may only be replaced in the event of a complaint (corrosion)/replace screws after every removal! | Final tightening | + 30° | + 4° | |
|
Brake calliper screws on pad retaining pin |
|||||
