Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Brake pipes to brake calliper (front and rear axle) | M10 x 1 | Tightening torque | 16 N.m (11.8 ft lb.) | ||
|

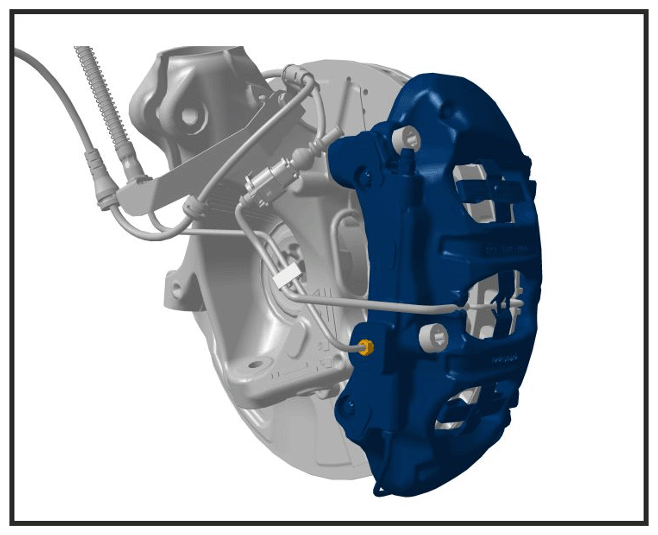

Brake pipe to brake calliper (in picture: front axle) |
|||||
| Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes) | M12 x 1.5/Different screw length on front and rear axle (see allocation in PET). | Tightening torque | 85 N.m (62.7 ft lb.) | ||
|

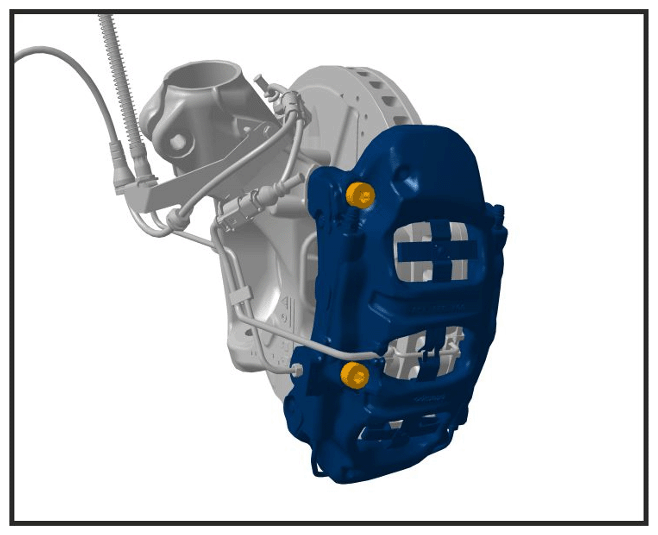

Brake calliper to wheel bearing housing (in picture: front axle) |
|||||
| Holder to wheel bearing housing | Screw with washer assembly, M6 x 16 | Tightening torque | 10 N.m (7.5 ft lb.) | ||
