Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Brake master cylinder to brake booster | Hexagon nut, M14 | Tightening torque | 49 N.m (36 ft lb.) | +/- 4 (3 ft lb.) N | m |
|

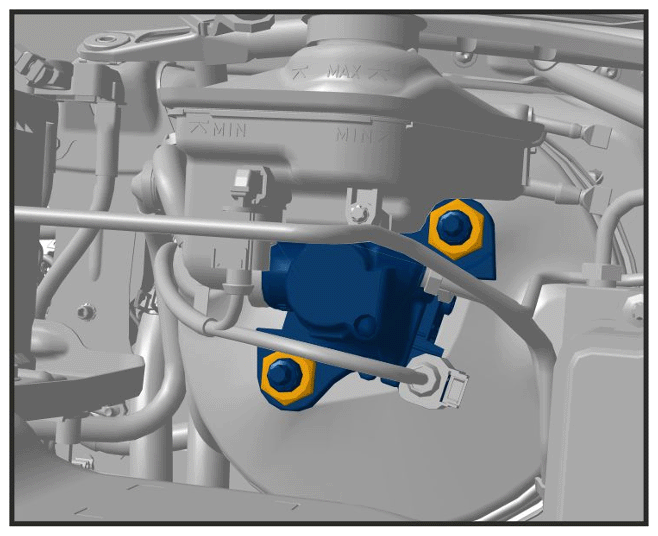

Brake master cylinder on brake booster |
|||||
| Brake fluid reservoir to brake master cylinder | Torx screw, E7 | Tightening torque | 8 N.m (6 ft lb.) | ||
|

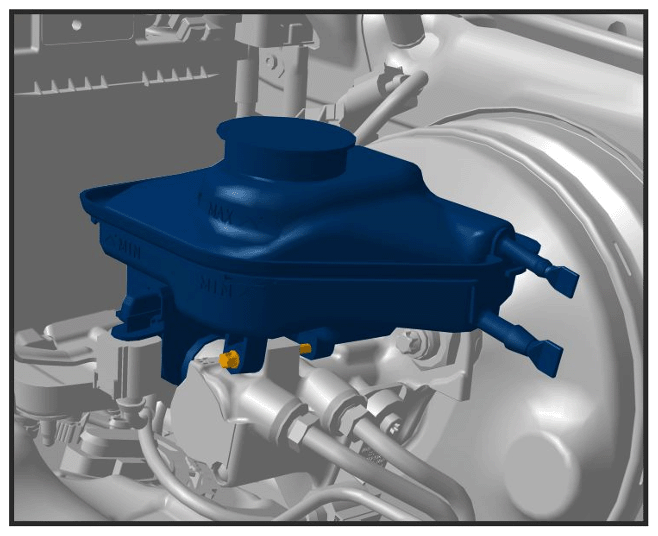

Brake fluid reservoir on brake master cylinder |
|||||
| Brake line to brake master cylinder | Cap screw, M12 x 1 | Tightening torque | 16 N.m (12 ft lb.) | ||
|

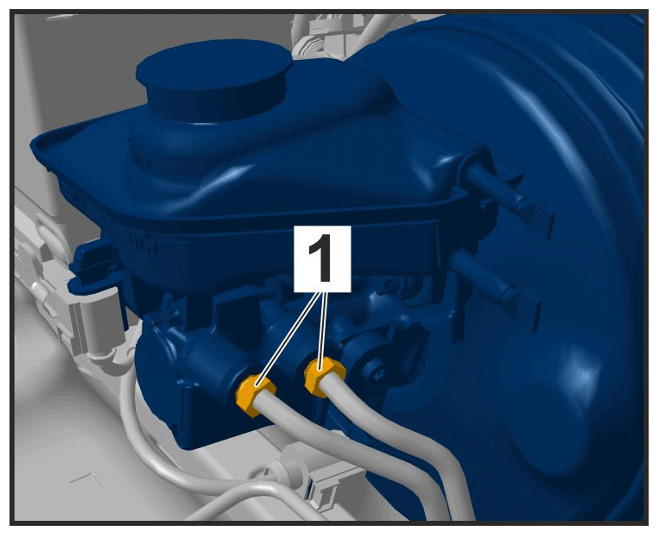

Brake lines on brake master cylinder |
|||||
