Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Spreader device (actuator) on wheel bearing housing | Arrows: M8 x 38 - Replace screw | initial tightening | 10 N.m (7.4 ft lb.) | ||
|

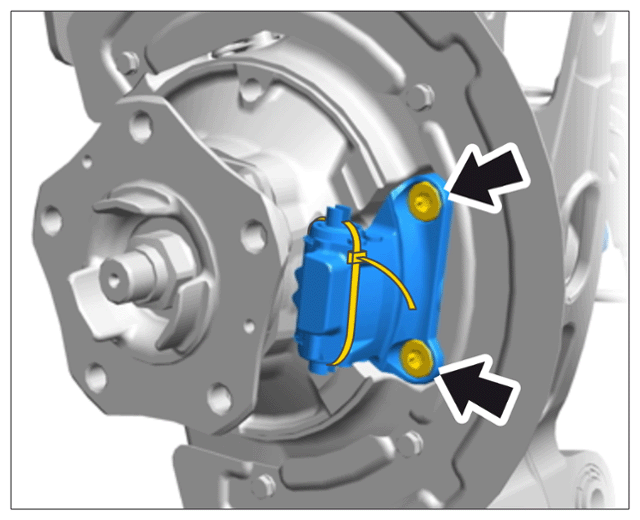

Spreader device mounting (example) |
|||||
| Spreader device (actuator) on wheel bearing housing | Arrows: M8 x 38 - Replace screw | Final tightening | + 60° | ||
|
Spreader device mounting (example) |
|||||
