Removing Spreader Device (Actuator)

Information

The spreader device (actuator) is fitted on the rear-axle wheel bearing housing. It is the servo motor for the electric parking brake (EPB) and spreads the parking-brake shoes when actuated.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

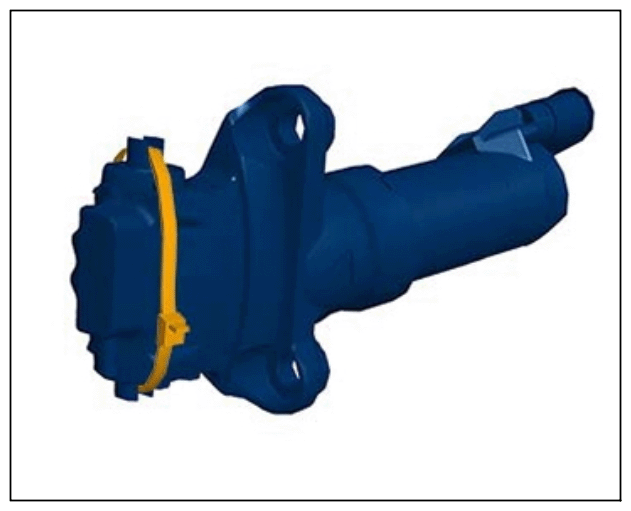

Actuator

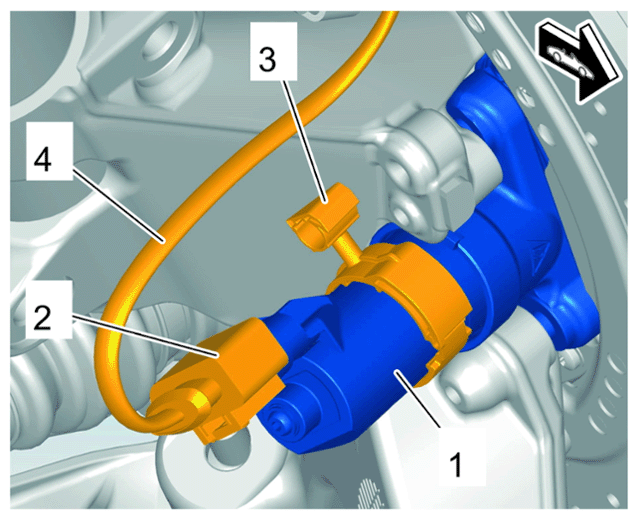

1. Release and disconnect electric plug connection -2-  on the actuator -1-  .
2. Unclip electric wire harness -4-  from the retaining clip -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Actuator

3. Unscrew screws -Arrows-  for actuator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

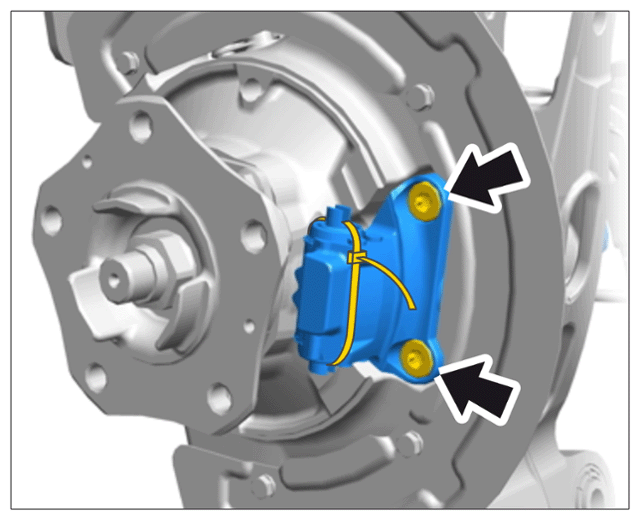

   Mounting for actuator

4. Unscrew screws for rear brake cover plate.
5. Remove actuator.
   1. 5.1 Turn the brake cover plate so that the actuator can be removed.
   2. 5.2 Remove actuator -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

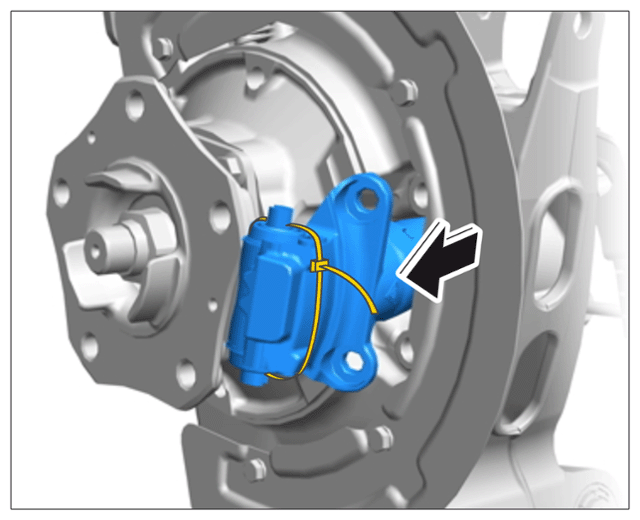

   Removing actuator
