Installing Spreader Device (Actuator)

  1. If you intend to re-use the actuator:  Clean the actuator carefully without damaging the dust boots.
  2. If you intend to re-use the actuator:  Visually inspect the dust boots for cracks.
  3. Further installation is performed in reverse order to removal.

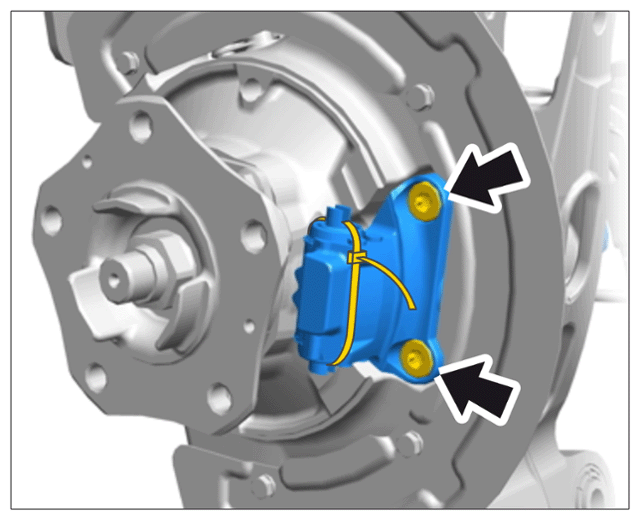

    1. 3.1 Tighten screws on actuator -Arrows-  : > initial tightening 10 N.m (7.4 ft lb.)  > Final tightening + 60°
      G16222452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for actuator

    2. 3.2 Tighten screws on brake cover plate:>.
