Preliminary Work

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Remove wheel.
> 440519 REMOVING AND INSTALLING WHEEL

For vehicles with PCCB: Use assembly aids (two assembly pins) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

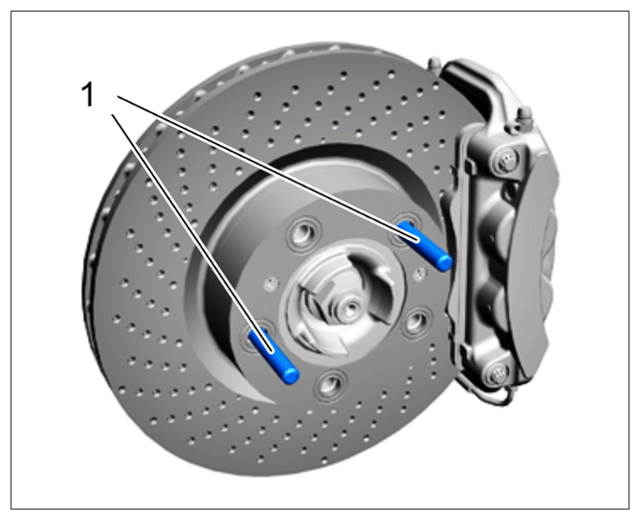

Wheel assembly pins (shown as an example)
Remove rear brake disc.
> 465319 REMOVING AND INSTALLING REAR BRAKE DISC
