Removing And Installing Control Unit For Parking Brake

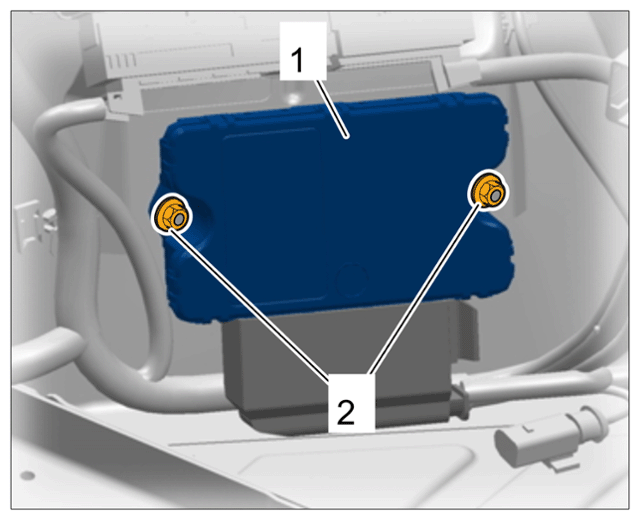

Unscrew nuts -2- .
Pull parking brake control unit -1- off the studs.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening parking brake control unit

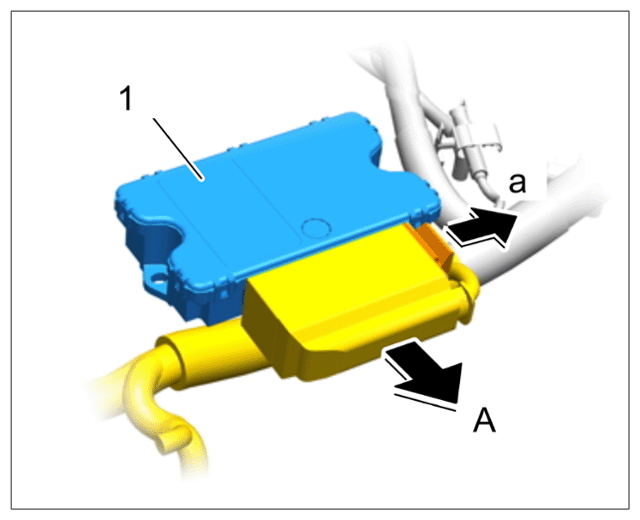

Release electric plug connection on parking brake control unit -1- (-arrow a- ) and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection
Installation is performed in reverse order.
Screw in and tighten nuts. > Tightening torque 4.5 N.m (3.5 ft lb.)
