Removing And Installing Parking Brake Actuator

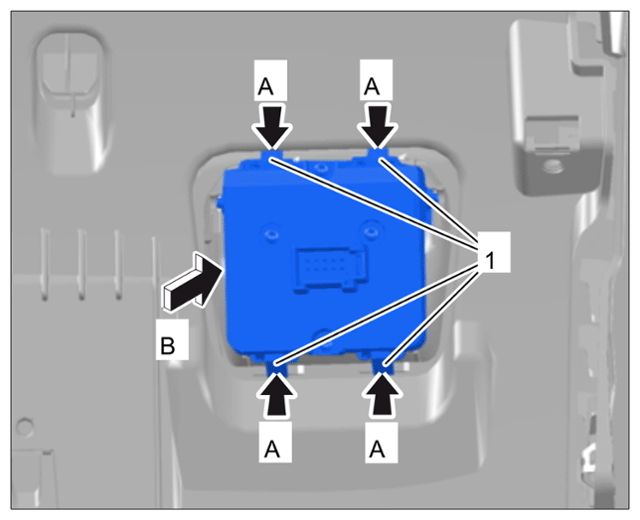

  1. Release retaining clips -1-  and remove parking brake actuator -arrow B-  .
    G16222431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing actuator for parking brake

  2. Installation is performed in reverse order.
