Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...
Brake disc to wheel hub (front and rear axle)	M6	Tightening torque	5 N.m (3.7 ft lb.)

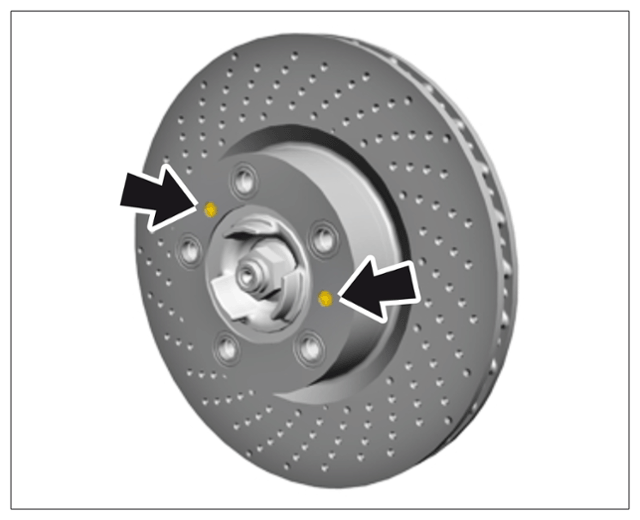

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc screws
Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes)	M12 x 1.5/Different screw length on front and rear axle (see allocation in PET).	Tightening torque	85 N.m (62.7 ft lb.)

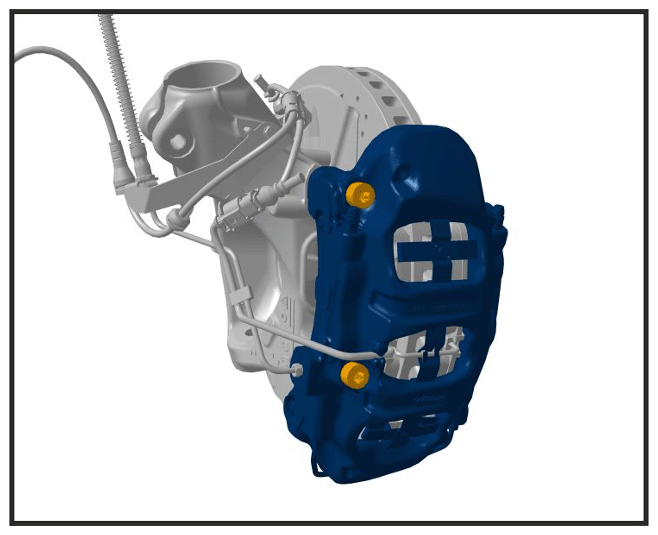

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Holder to wheel bearing housing	Screw with washer assembly, M6 x 16	Tightening torque	10 N.m (7.5 ft lb.)
