Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Brake hose bracket to wheel bearing housing | M6 screw | Tightening torque | 10 N.m (7.4 ft lb.) | ||
| Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes) | M12 x 1.5/Different screw length on front and rear axle (see allocation in PET). | Tightening torque | 85 N.m (62.7 ft lb.) | ||
|

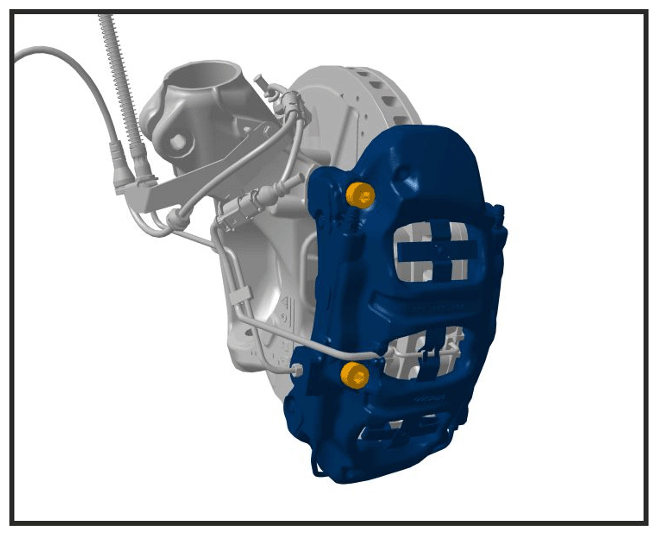

Brake calliper to wheel bearing housing (in picture: front axle) |
|||||
| Brake disc to wheel hub (front and rear axle) | M6 | Tightening torque | 5 N.m (3.7 ft lb.) | ||
|

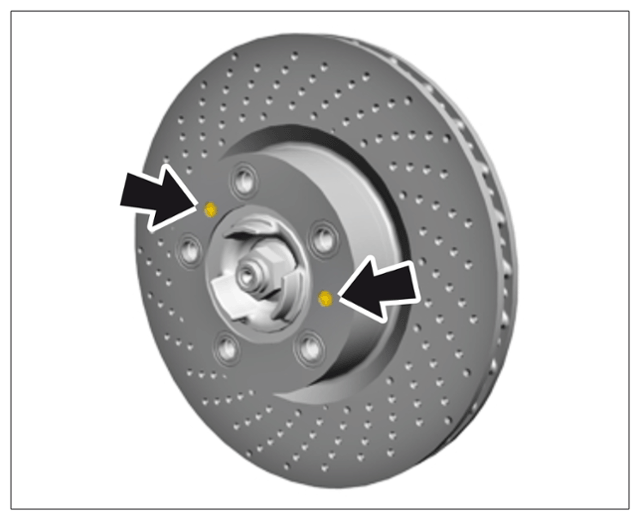

Brake disc screws |
|||||
