Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...
Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes)	M12 x 1.5/Different screw length on front and rear axle (see allocation in PET).	Tightening torque	85 N.m (62.7 ft lb.)

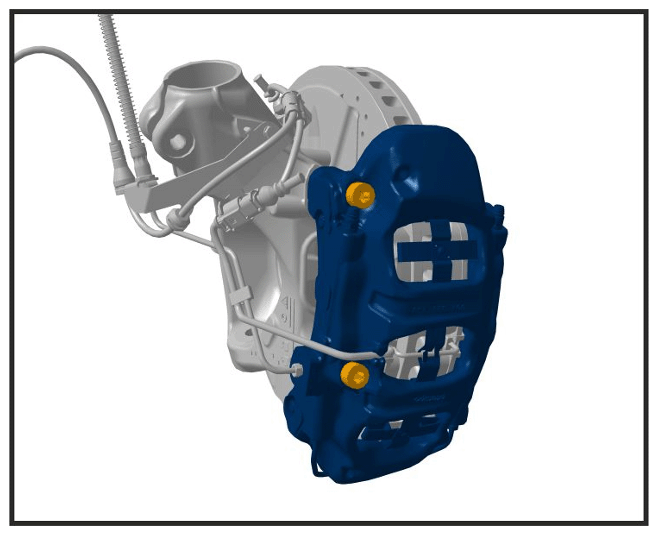

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Brake calliper to wheel bearing housing, front and rear axle for new screws (PCCB and grey cast iron brakes)	M12 x 1.5/new screws/different screw length on front and rear axle (see allocation in PET).	Initial tightening	30 N.m (22.1 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
Brake calliper to wheel bearing housing, front and rear axle for new screws (PCCB and grey cast iron brakes)	M12 x 1.5/new screws/different screw length on front and rear axle (see allocation in PET).	Final tightening	+ 75°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper to wheel bearing housing (in picture: front axle)
