Inspection During Intermediate Maintenance

  1. Visually inspect the brake pads for wear.
  1. 1.1 Only when changing brake fluid at the same time:  Perform visual inspection with wheels removed.

    > 440519 REMOVING AND INSTALLING WHEEL

    Information

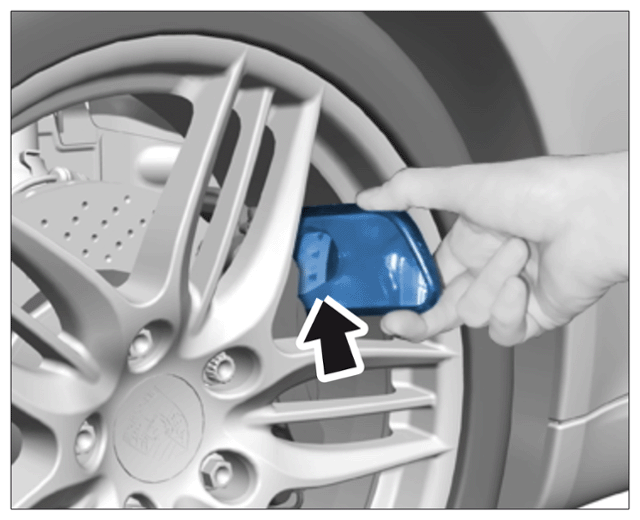

    A mirror can be used as an aid -arrow-  .

    G16222369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Checking brake pads

  2. 1.2 Outside of brake pad: Perform visual inspection through the cut-outs in the rim.
  3. 1.3 Inside of brake pad: Perform visual inspection from below with the vehicle raised.

    > 4X00IN LIFTING THE VEHICLE
